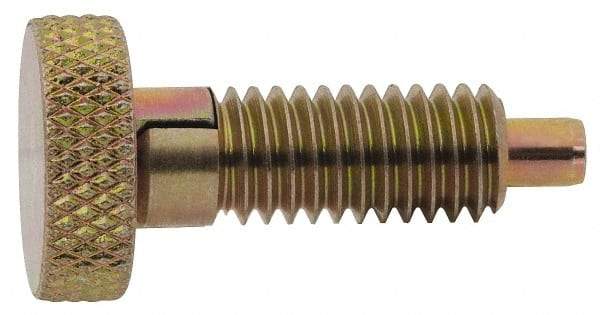

Vlier - M6x1.0, 0.4" Thread Length, 0.12" Max Plunger Diam, 0.5 Lb Init to 2 Lb Final End Force, Locking Knob Handle Plunger - Knurled Knob, 10mm Body Length, 0.53" Length Under Head/Shoulder, 0.13" Plunger Projection
Item #: 87881082
Brand: Vlier
Model #: SLFM6P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6x1.0 |
| Thread Length (mm) | 10.16 |
| Thread Length (Decimal Inch) | 0.4000 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Body Length (mm) | 10.00 |
| Length Under Head/Shoulder (mm) | 13.46 |
| Length Under Head/Shoulder (Decimal Inch) | 0.5300 |
| Plunger Projection (mm) | 3.30 |
| Plunger Projection (Decimal Inch) | 0.1300 |
| Maximum Plunger Diameter (mm) | 3.05 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1200 |
| Initial End Force (N) | 2.22 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (N) | 8.90 |
| Final End Force (Lb.) | 2.00 |
| Locking Element | Yes |
| Plunger Length (mm) | 20.32 |
| Plunger Length (Decimal Inch) | 0.8000 |
| Head Diameter (mm) | 12.70 |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Height (mm) | 6.86 |
| Head Height (Decimal Inch) | 0.2700 |
| Hex Size (mm) | 6.00 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
