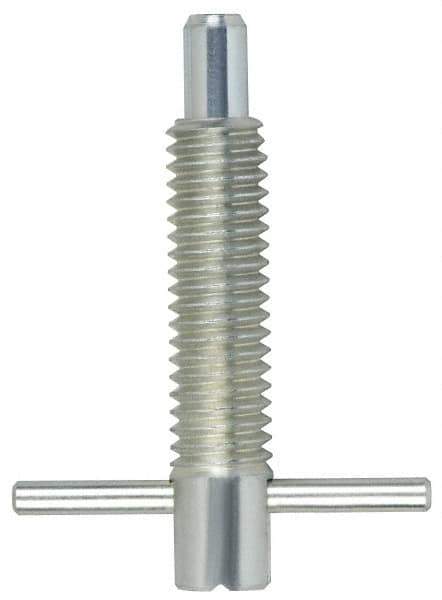

Vlier - M6x1.0 Thread, 1" Body Length, 1/4" Plunger Projection, 0.16" Plunger Diam, Steel, Locking T Handle Plunger - 0.8" Thread Length, 1.1" Handle Length, 1.1" Plunger Length, 1 Lb Initial End Force, 2-1/2 Lb Final End Force, Locking Element
Item #: 87881025
Brand: Vlier
Model #: FRTM6P
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Thread Size | M6x1.0 |
| Thread Length (Decimal Inch) | 0.8000 |
| Thread Length (mm) | 20.32 |
| Plunger Type | Locking |
| Body Length (mm) | 29.00 |
| Body Length (Decimal Inch) | 1.0000 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Plunger Projection (mm) | 6.40 |
| Plunger Diameter (mm) | 4.00 |
| Plunger Diameter (Decimal Inch) | 0.1600 |
| Locking Element | Yes |
| Initial End Force (N) | 4.40 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (N) | 11.00 |
| Final End Force (Lb.) | 2.50 |
| Plunger Length (Decimal Inch) | 1.1000 |
| Plunger Length (mm) | 27.94 |
| Head Diameter (mm) | 29.00 |
| Handle Width/Diameter (mm) | 3.30 |
| Handle Width/Diameter (Decimal Inch) | 0.1300 |
| Handle Length (mm) | 29.00 |
| Handle Length (Decimal Inch) | 1.1000 |
| Material | Steel |
