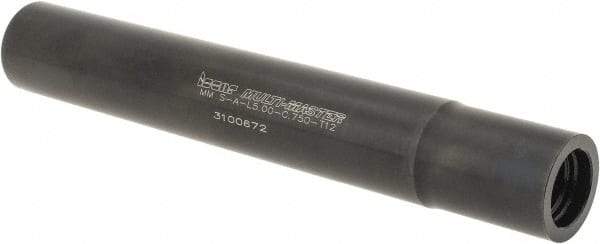

Iscar - Multimaster 3/4" Stepped Shank Milling Tip Insert Holder & Shank - 1" Projection, T12 Neck Thread, 0.72" Nose Diam, 5" OAL, Steel MM S-A Tool Holder
Item #: 87545968
Brand: Iscar
Model #: 3103852
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Projection (Decimal Inch) | 1.0000 |
| Neck Thread Size | T12 |
| Nose Diameter (Decimal Inch) | 0.7200 |
| Toolholder Material | Steel |
| Overall Length (Decimal Inch) | 5.0000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.8800 |
| Effective Length (Decimal Inch) | 1.0000 |
| Maximum Diameter (Decimal Inch) | 0.7200 |
| Milling Tip Style | MM EA; MM EA-CF; MM EB; MM EBA; MM EC-10; MM EC-3; MM EC-4; MM EC-6; MM EC-8; MM EC-CF; MM ECD; MM EC-D; MM ECF; MM EC-H; MM ECS; MM ECU; MM EDF; MM EFF; MM EFS; MM EFS-CF; MM EPG; MM ERA; MM ERS; MM ETR; MM FF; MM GRIT-16K/P; MM GRIT-18K/P; MM GRIT-22K/P |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
