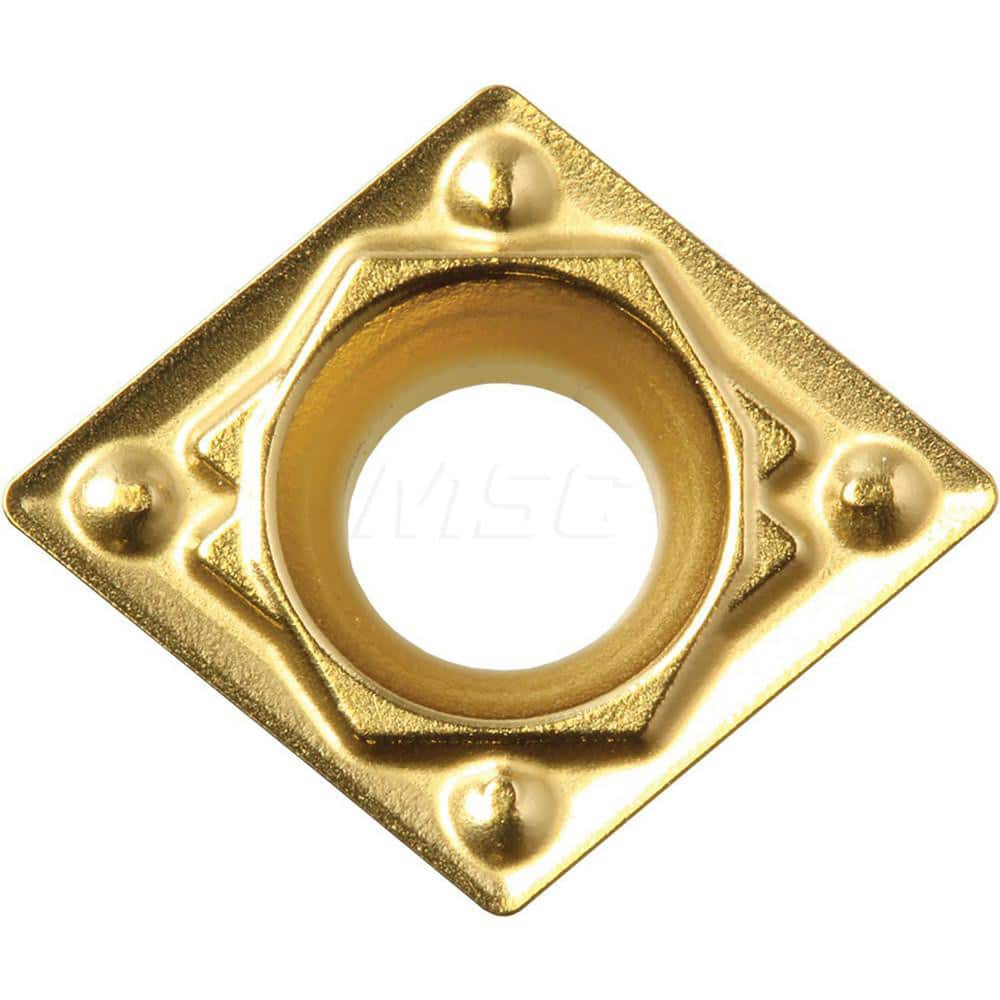

Kyocera CPMH 25151HQ CA5515 Grade CVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel
Item #: 87465258
Brand: Kyocera
Model #: TJQ01360
Product Specifications
| Insert Style | CPMH |
| Insert Shape Code | C |
| Insert Size Code | 25151 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5515 |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Inscribed Circle (Inch) | 5/16 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 5/16 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Primary Workpiece Material | P |
| Iso Code | CPMH080204HQ |
| Manufacturers Catalog Number | CPMH25151HQCA5515 |
| Chip Breaker | HQ |
| Style | CPMH |
| Full Radius | No |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | Internal Facing; Boring |
