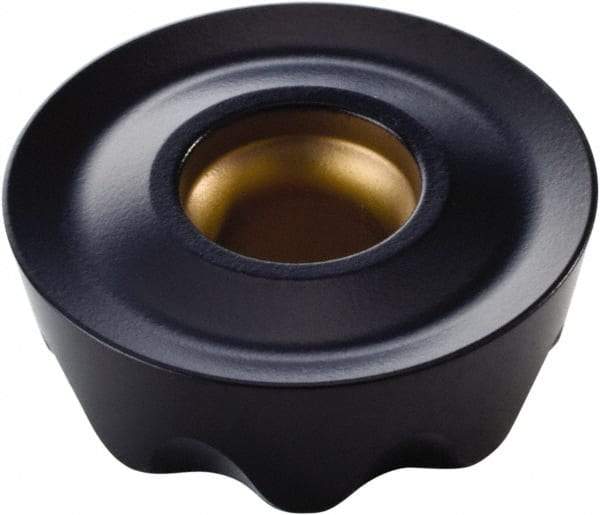

Kennametal - RPET1605M0 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 7/32" Thick, 16mm Inscribed Circle
Item #: 87323416
Brand: Kennametal
Model #: 3891649
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPET |
| Insert Size | 1605M0 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Hole Diameter (mm) | 4.66 |
| Hole Diameter (Decimal Inch) | 0.1835 |
| Relief Angle | 11.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| ISO Number | RPET1605M0ELE |
