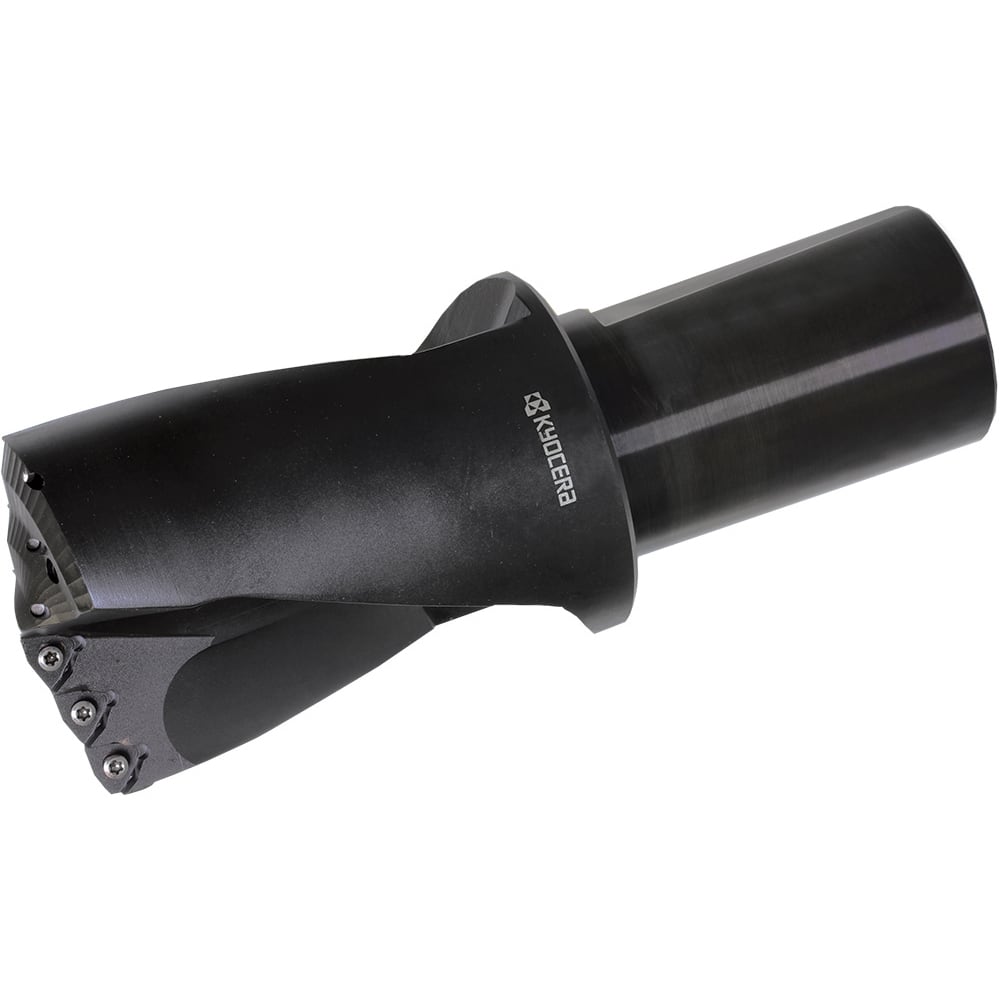

Kyocera - Indexable Insert Drills; Drill Style: DR ; Drill Diameter (Inch): 2.0625 ; Maximum Drill Depth (Decimal Inch): 2.1300 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
Item #: 87252490
Brand: Kyocera
Model #: 8600902
Product Specifications
Indexable Insert Drills; Drill Style: DR ; Drill Diameter (Inch): 2.0625 ; Maximum Drill Depth (Decimal Inch): 2.1300 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
| Drill Style | DR |
| Drill Diameter (Inch) | 2.0625 |
| Maximum Drill Depth (Decimal Inch) | 2.1300 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.0625 |
| Overall Length/Projection (Decimal Inch) | 6.0600 |
| Insert Compatibility | WCMX |
| Flute Length (Decimal Inch) | 2.1300 |
| Body Length (Decimal Inch) | 3.3800 |
| Shank Length (Decimal Inch) | 2.6900 |
