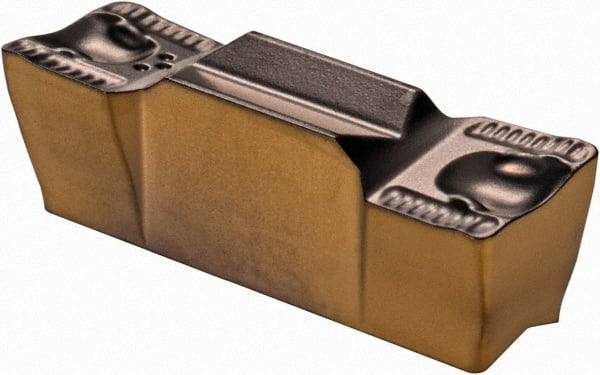

Iscar - GRIP6005Y IC808 Carbide Grooving Insert
Item #: 87137600
Brand: Iscar
Model #: 6200330
Product Specifications
| Insert Style | GRIP |
| Insert Size | 6005 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1417 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Chipbreaker | Y |
| Multi-Use Application | Boring; Facing; Grooving; Parting; Turning |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heli-Grip |
| ISO Number | GRIP 6005Y |
| Manufacturers Catalog Number | GRIP 6005Y |
| Series Number | Heli-Grip |
| Insert Holding Method | Self Grip |
| Corner Radius (Inch) | 0.0197 |
