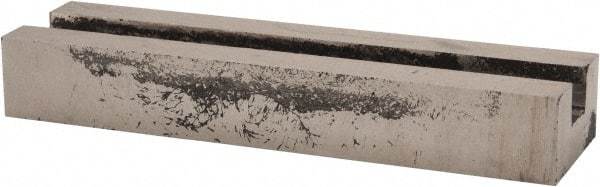

Eclipse - 1/2" Channel Width, 6" Long, 36 kg Max Pull Force, Rectangle Alnico Channel Magnet - 1-1/2" Overall Width, 550°C Max Operating Temp, 7/8" High, Grade 5 Alnico
Item #: 86784865
Brand: Eclipse
Model #: M19281/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Magnet Shape | Rectangle |
| Length (mm) | 152.00 |
| Length (Inch) | 6 |
| Length (Decimal Inch) | 5.9844 |
| Overall Width (mm) | 38.10 |
| Overall Width (Inch) | 1-1/2 |
| Overall Width (Decimal Inch) | 1.5000 |
| Height (Decimal Inch) | 0.8750 |
| Height (mm) | 22.23 |
| Height (Inch) | 7/8 |
| Average Pull Force (Lb.) | 60.00 |
| Maximum Pull Force (Lb.) | 79.37 |
| Maximum Pull Force (kg) | 36.00 |
| Channel Width (mm) | 12.70 |
| Channel Width (Decimal Inch) | 0.5000 |
| Channel Width (Inch) | 1/2 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 1022.00 |
| Maximum Operating Temperature (C) | 550.00 |
