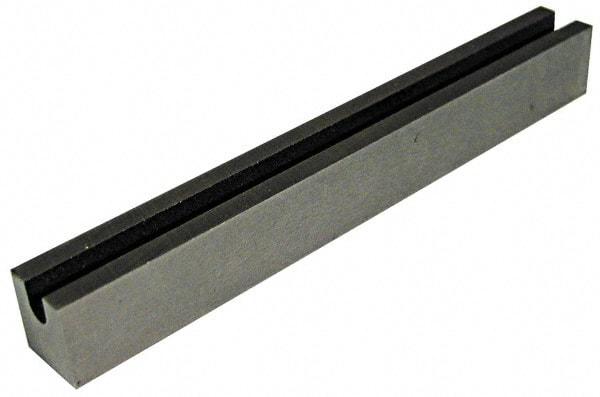

Eclipse - 7/16" Channel Width, 6" Long, 29 kg Max Pull Force, Rectangle Alnico Channel Magnet - 1-1/4" Overall Width, 550°C Max Operating Temp, 3/4" High, Grade 5 Alnico
Item #: 86784857
Brand: Eclipse
Model #: M19280/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Magnet Shape | Rectangle |
| Length (mm) | 152.00 |
| Length (Inch) | 6 |
| Length (Decimal Inch) | 5.9844 |
| Overall Width (mm) | 31.75 |
| Overall Width (Inch) | 1-1/4 |
| Overall Width (Decimal Inch) | 1.2500 |
| Height (Decimal Inch) | 0.7500 |
| Height (mm) | 19.05 |
| Height (Inch) | 3/4 |
| Average Pull Force (Lb.) | 64.00 |
| Maximum Pull Force (Lb.) | 63.93 |
| Maximum Pull Force (kg) | 29.00 |
| Channel Width (mm) | 11.11 |
| Channel Width (Decimal Inch) | 0.4375 |
| Channel Width (Inch) | 7/16 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 1022.00 |
| Maximum Operating Temperature (C) | 550.00 |
