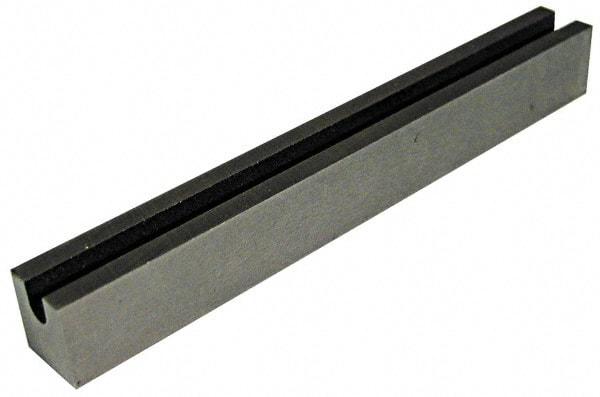

Eclipse - 1/4" Channel Width, 5" Long, 7 kg Max Pull Force, Rectangle Alnico Channel Magnet - 5/8" Overall Width, 550°C Max Operating Temp, 3/8" High, Grade 5 Alnico
Item #: 86784824
Brand: Eclipse
Model #: M19277/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Magnet Shape | Rectangle |
| Length (mm) | 127.00 |
| Length (Inch) | 5 |
| Length (Decimal Inch) | 5.0000 |
| Overall Width (mm) | 15.88 |
| Overall Width (Inch) | 5/8 |
| Overall Width (Decimal Inch) | 0.6250 |
| Height (Decimal Inch) | 0.3750 |
| Height (mm) | 9.53 |
| Height (Inch) | 3/8 |
| Average Pull Force (Lb.) | 16.00 |
| Maximum Pull Force (Lb.) | 15.43 |
| Maximum Pull Force (kg) | 7.00 |
| Channel Width (mm) | 6.35 |
| Channel Width (Decimal Inch) | 0.2500 |
| Channel Width (Inch) | 1/4 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 1022.00 |
| Maximum Operating Temperature (C) | 550.00 |
