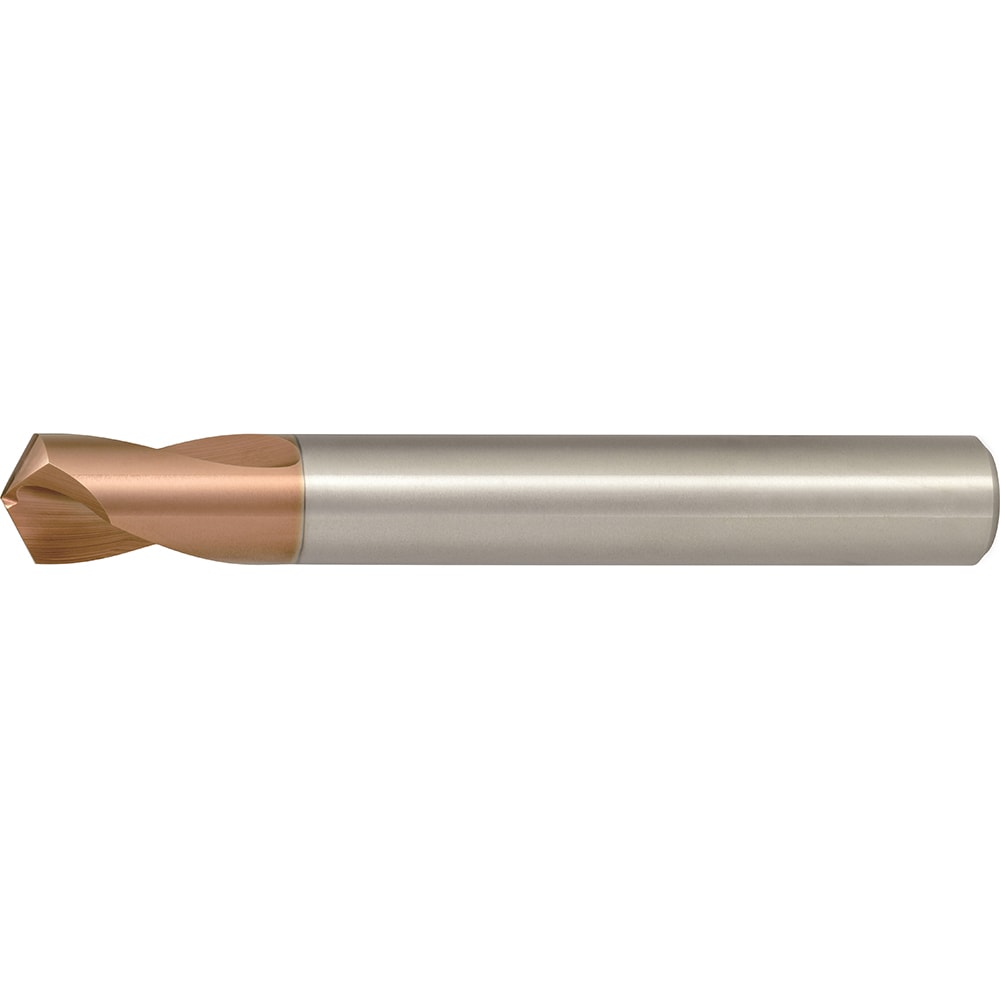

Extra Length Drill Bit: 0.3937", 90 °, Carbide
Item #: 95970612
Brand: Mitsubishi
Model #: 10592083
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Overall Length (mm) | 84.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 90 |
| Flute Length (mm) | 24.00 |
| Point Type | X-Thinning |
| Series | DLE |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering; Centering |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Point Length (mm) | 4.30 |
| Drill Point Length (Decimal Inch) | 0.1693 |
| Overall Length (Decimal Inch) | 3.3071 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.000 |
| Flute Length (Decimal Inch) | 0.9449 |
| Maximum Drilling Depth (Decimal Inch) | 0.1614 |
| Maximum Drilling Depth (mm) | 4.10 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Country of Origin | VARIOUS |
