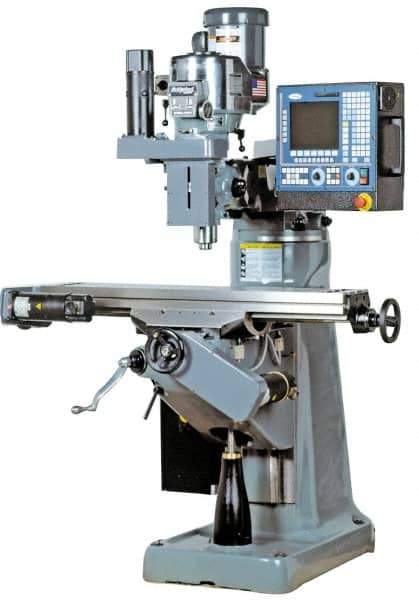

Bridgeport - 48" Long x 9" Wide, 3 Phase Fagor 8055-i CNC Milling Machine - Variable Speed Pulley Control, R8 Taper, 3 hp
Item #: 85629194
Brand: Bridgeport
Model #: BP-FAGORCNC
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| CNC Controller Brand | Fagor |
| CNC Controller Model | 8055-i |
| Table Length (Inch) | 48 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Inch) | 16 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Horsepower (HP) | 3.00 |
| Includes | Fagor 8055I Control (MSC 85698900) |
