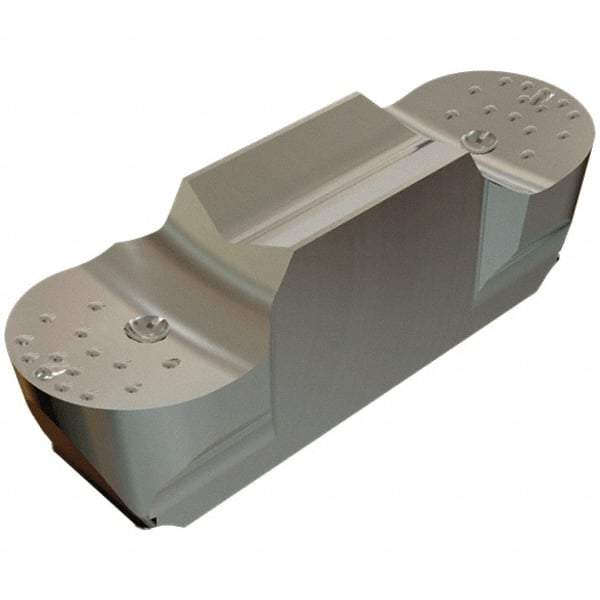

Iscar - 200100GEPI Grade IC528, 2mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Neutral, 1mm Corner Radius, TiCN/TiN Finish
Item #: 85561462
Brand: Iscar
Model #: 6403362
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 200100 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | PVD |
| Overall Length (mm) | 10.00 |
| Overall Length (Decimal Inch) | 0.3937 |
| Series | Cut Grip |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
