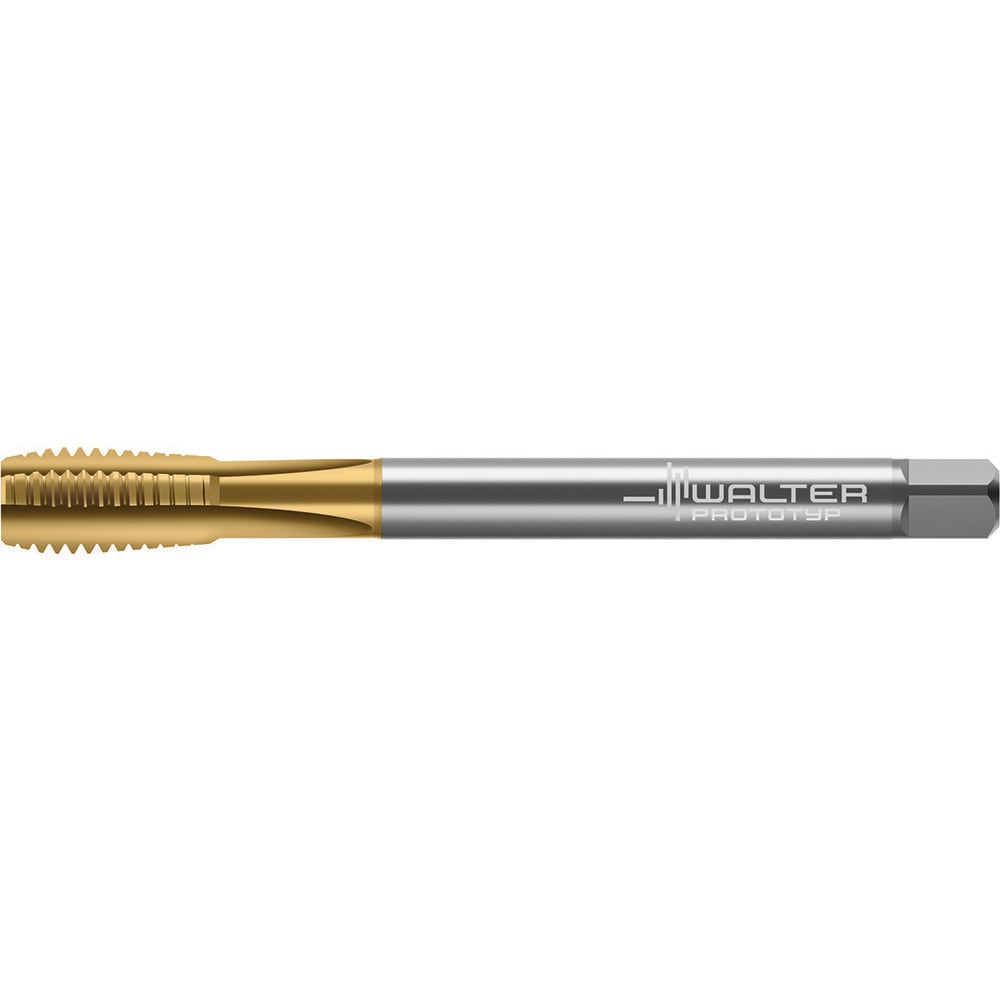

Straight Flute Tap: 1/2-13 UNC, 3 Flute, Semi-Bottoming Chamfer, 2B Class of Fit, HSS-E, TiN Finish
Item #: 53461745
Brand: Walter-Prototyp
Model #: 8237494
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | UNC |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Class Of Fit | 2B |
| Thread Limit | H9 |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.0000 |
| Threads per Inch | 13 |
| Thread Length (Inch) | 0.9055 |
| Thread Length (mm) | 23.00 |
| Application | Threading |
| Shank Diameter (mm) | 9.0000 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Tapping Depth (mm) | 23.00 |
| Tapping Depth (Decimal Inch) | 0.9055 |
| Square Length (mm) | 10.00 |
| Square Length (Decimal Inch) | 0.3937 |
| Square Size (mm) | 7.00 |
| Square Size (Decimal Inch) | 0.2756 |
| Series | TC130 |
| UNSPSC Code | 23241600 |
