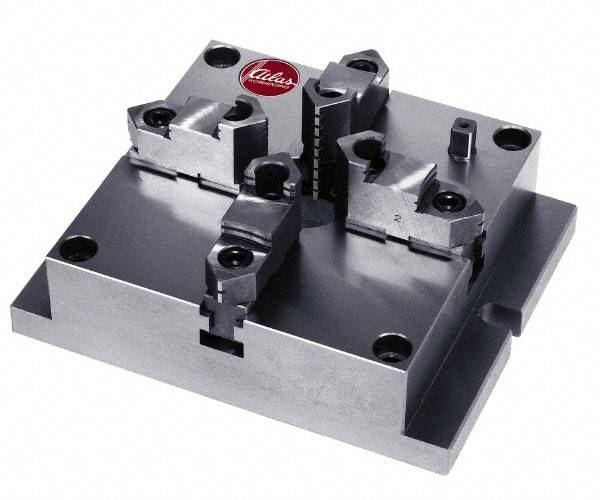

Atlas Workholding - 10" Chuck Diam, 0.24 to 7.78" External Chucking Diam, Low Profile Machining Chuck - 8.58" Bolt Hole Spacing, 2.76" Through Hole, 2.83 to 7.78" Internal Chucking Diam, 12.2" Base Len x 9.84" Base Width x 2.83" Base Height
Item #: 85028538
Brand: Atlas Workholding
Model #: MCA-10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 10 |
| Minimum External Chucking Diameter (Decimal Inch) | 0.2400 |
| Maximum External Chucking Diameter (Decimal Inch) | 7.7800 |
| Minimum Internal Chucking Diameter (Decimal Inch) | 2.8300 |
| Maximum Internal Chucking Diameter (Decimal Inch) | 7.7800 |
| Through Hole Size (Decimal Inch) | 2.7600 |
| Base Width/Diameter (Decimal Inch) | 9.8400 |
| Overall Height (Decimal Inch) | 2.8300 |
| Bolt Hole Spacing (Decimal Inch) | 8.5800 |
| Base Length (Decimal Inch) | 12.2000 |
