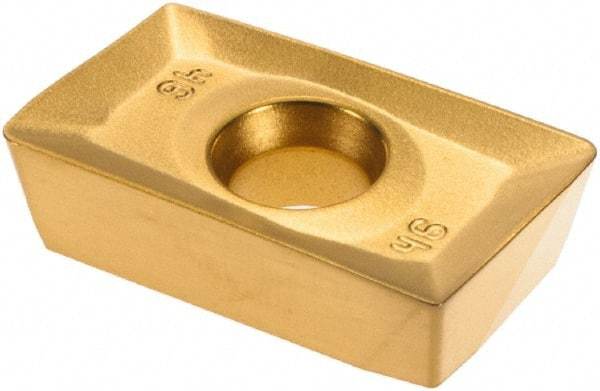

Kennametal - APHT160408 46 Grade X500 Carbide Milling Insert - TiN/TiC/TiN Finish, 0.187" Thick, 1/32" Corner Radius
Item #: 84646207
Brand: Kennametal
Model #: 5658155
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APHT |
| Insert Size | 160408 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C6/C7 |
| Manufacturer's Grade | X500 |
| Coating | TiN/TiC/TiN |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.6560 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | 46 |
