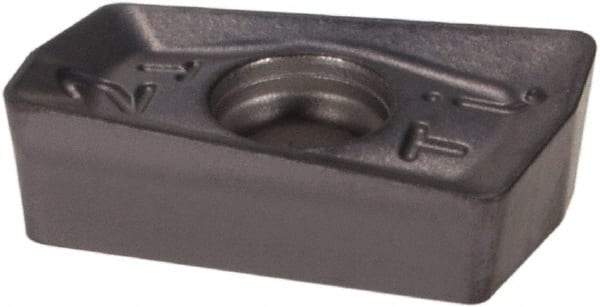

Iscar - HP ANKT0702PN RM Grade IC950 Carbide Milling Insert - TiAlN Finish, 0.102" Thick, 0.5mm Corner Radius
Item #: 84641893
Brand: Iscar
Model #: 5604594
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HP ANKT |
| Insert Size | 0702PN |
| Material | Carbide |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC950 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.1772 |
| Length (Decimal Inch) | 0.3031 |
| Thickness (Decimal Inch) | 0.1020 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | RM |
| ISO Number | HP ANKT 0702PNTR |
