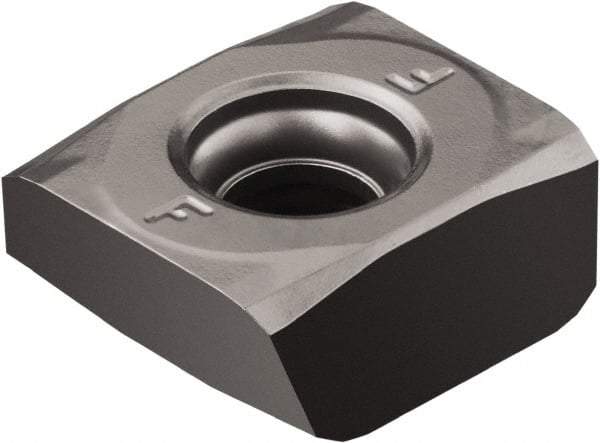

Sandvik Coromant - N260.81204 F Grade CB50 CBN Milling Insert - Uncoated, 1/2" Thick, 3/16" Inscribed Circle, 1.8mm Corner Radius
Item #: 84637909
Brand: Sandvik Coromant
Model #: 5736993
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | N260.8 |
| Insert Size | 1204 |
| Material | CBN |
| Manufacturer's Grade | CB50 |
| Coating | Uncoated |
| Width (mm) | 4.76 |
| Width (Decimal Inch) | 0.1875 |
| Length (mm) | 1.00 |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (mm) | 12.70 |
| Thickness (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0709 |
| Corner Radius (mm) | 1.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | F |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | N260.8-1204-F CB50 |
