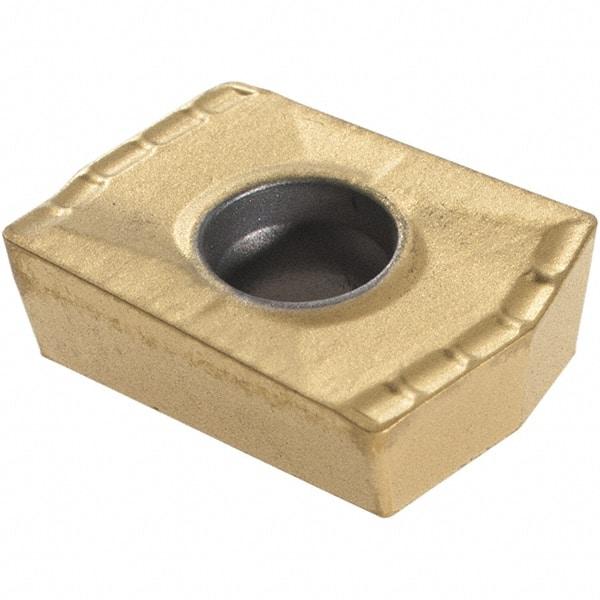

Kennametal - DFR040304 MD Grade KC7140 Carbide Indexable Drill Insert - TiN/TiCN Finish
Item #: 84579903
Brand: Kennametal
Model #: 3015440
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiCN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | DFR |
| Insert Size | 040304 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | KC7140 |
| Thickness (mm) | 3.79 |
| Thickness (Decimal Inch) | 0.1492 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Width (Decimal Inch) | 0.2906 |
| Width (mm) | 7.38 |
| Length (mm) | 10.76 |
| Length (Decimal Inch) | 0.4236 |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1122 |
| Coating | TiN/TiCN |
| Coating Process | PVD |
| Chipbreaker | MD |
