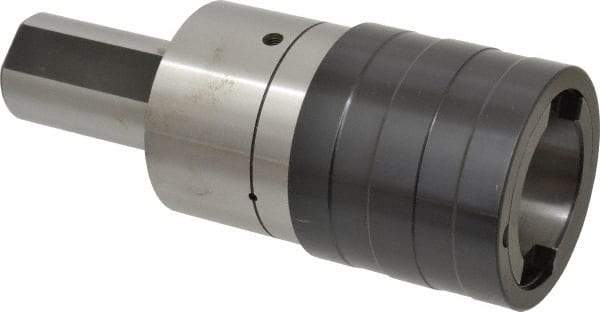

Accupro - 1-1/2" Straight Shank Diam Tension & Compression Tapping Chuck - 13/16 to 1-3/8" Tap Capacity, 3.818" Projection, Size 3 Adapter, Quick Change
Item #: 84532761
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Minimum Tap Capacity (Inch) | 13/16 |
| Maximum Tap Capacity (Inch) | 1-3/8 |
| Maximum Tap Capacity (mm) | M33 |
| Projection (Decimal Inch) | 3.8180 |
| Quick Change | Yes |
| Adapter Size | 3 |
| Nose Diameter (Decimal Inch) | 3.0700 |
| Through Coolant | No |
