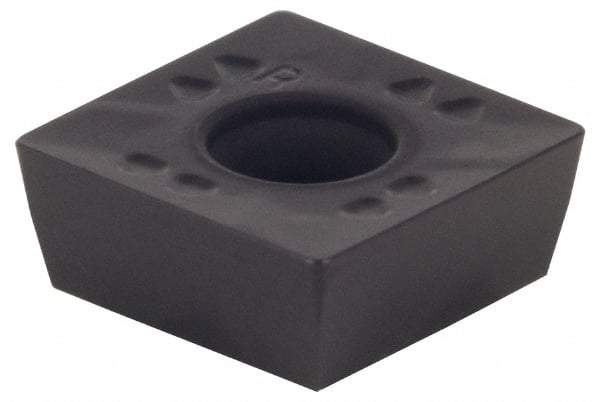

Kennametal - SPET31251 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.1563" Thick, 10mm Inscribed Circle, 0.4mm Corner Radius
Item #: 83993212
Brand: Kennametal
Model #: 3654503
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPET |
| Insert Size | 31251 |
| Material | Carbide |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 11.000 |
| Included Angle | 90 |
| Shape | Square |
| ISO Number | SPET10T304PPERGB2 |
