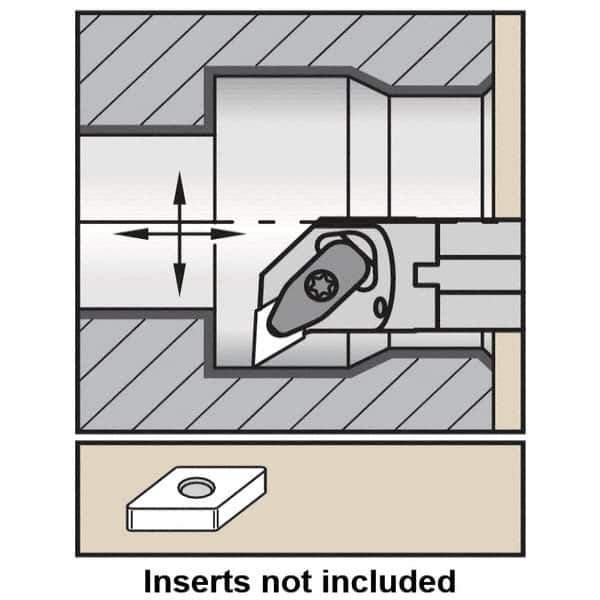

Kennametal - 63mm Min Bore Diam, 350mm OAL, 50mm Shank Diam, A-DDUN-KC Indexable Boring Bar - DN.. Insert, Clamp Holding Method
Item #: 83961177
Brand: Kennametal
Model #: 2441949
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDUN-KC |
| Series | Kenclamp |
| Minimum Bore Diameter (mm) | 63.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9690 |
| Insert Compatibility | DN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 35.00 |
| Insert Thickness (Inch) | 1/4 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DN.. 150608 |
| Toolholder Material | Steel |
