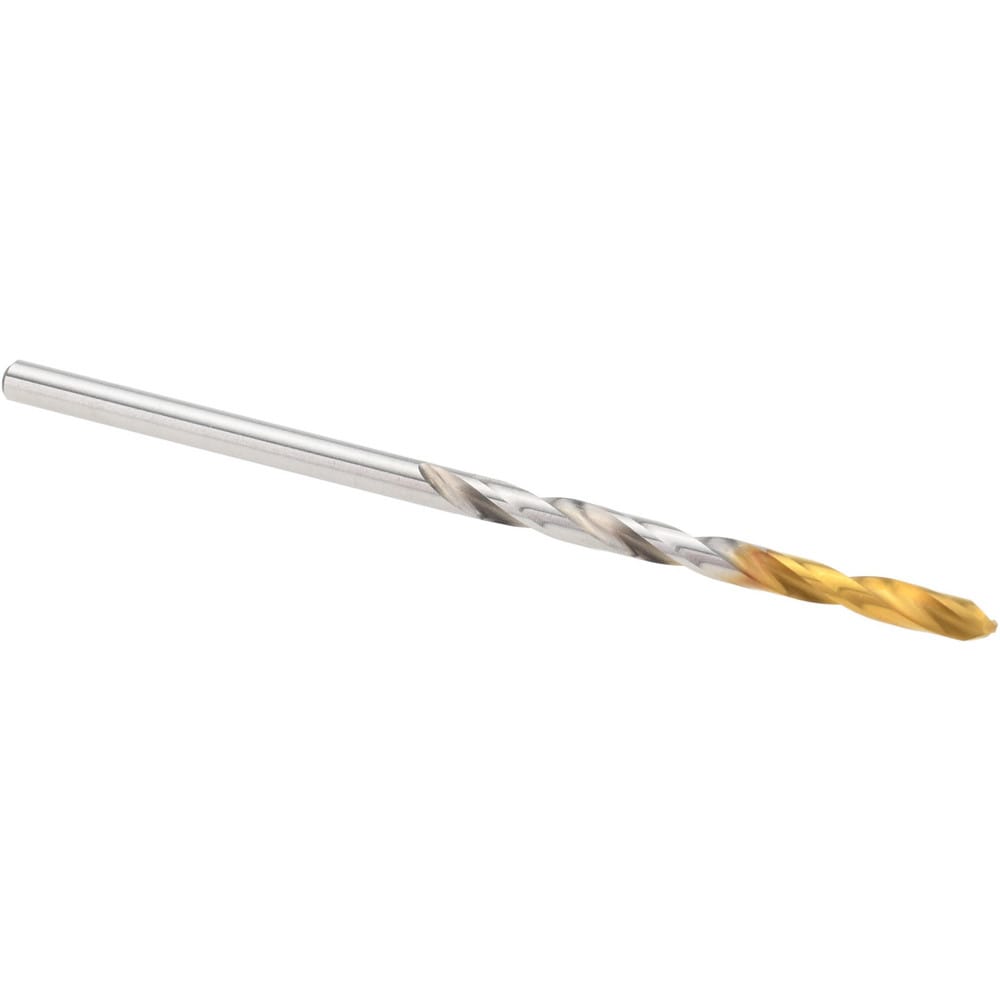

Jobber Drill: 3/32" Dia, 135 deg Point, High Speed Steel
Item #: 00793224
Brand: YG-1
Model #: D2GP185006
Product Specifications
| Drill Bit Size (Inch) | 3/32 |
| Drill Bit Size (Decimal Inch) | 0.0938 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-1/4 |
| Primary Workpiece Material Code | P |
| Shank Diameter (Decimal Inch) | 0.0938 |
| Overall Length (mm) | 57.15 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Spiral Type | Regular |
| Flute Length (mm) | 31.75 |
| Flute Length (Decimal Inch) | 1.2500 |
| Series | D2GP185 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 13xD |
| Shank Diameter (Inch) | 3/32 |
| Maximum Drilling Depth (Decimal Inch) | 1.2500 |
| Maximum Drilling Depth (Inch) | 1-1/4 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (Inch) | 1 |
| Number of Flats | 0 |
| Drill Bit Diameter Tolerance | -0.0005 to +0.0000 |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| UNSPSC Code | 23241634 |
