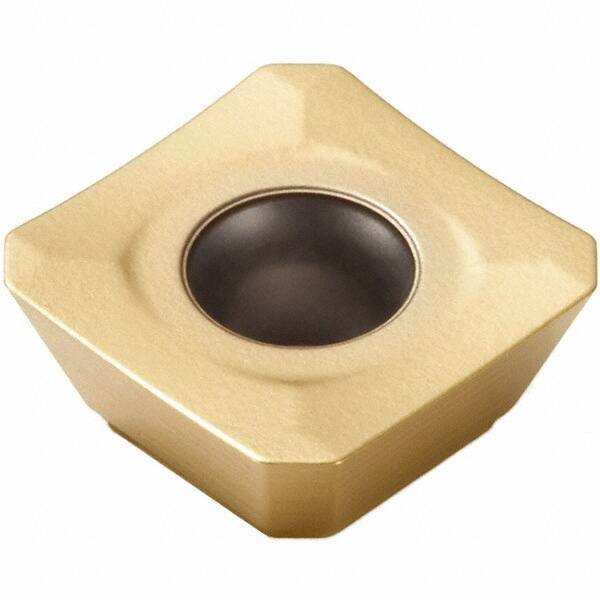

Seco - SEEX09T3 M05 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.156" Thick, 3/8" Inscribed Circle
Item #: 83257170
Brand: Seco
Model #: 44596
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 09T3 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M05 |
| ISO Number | SEEX09T3AFN-M05 |
