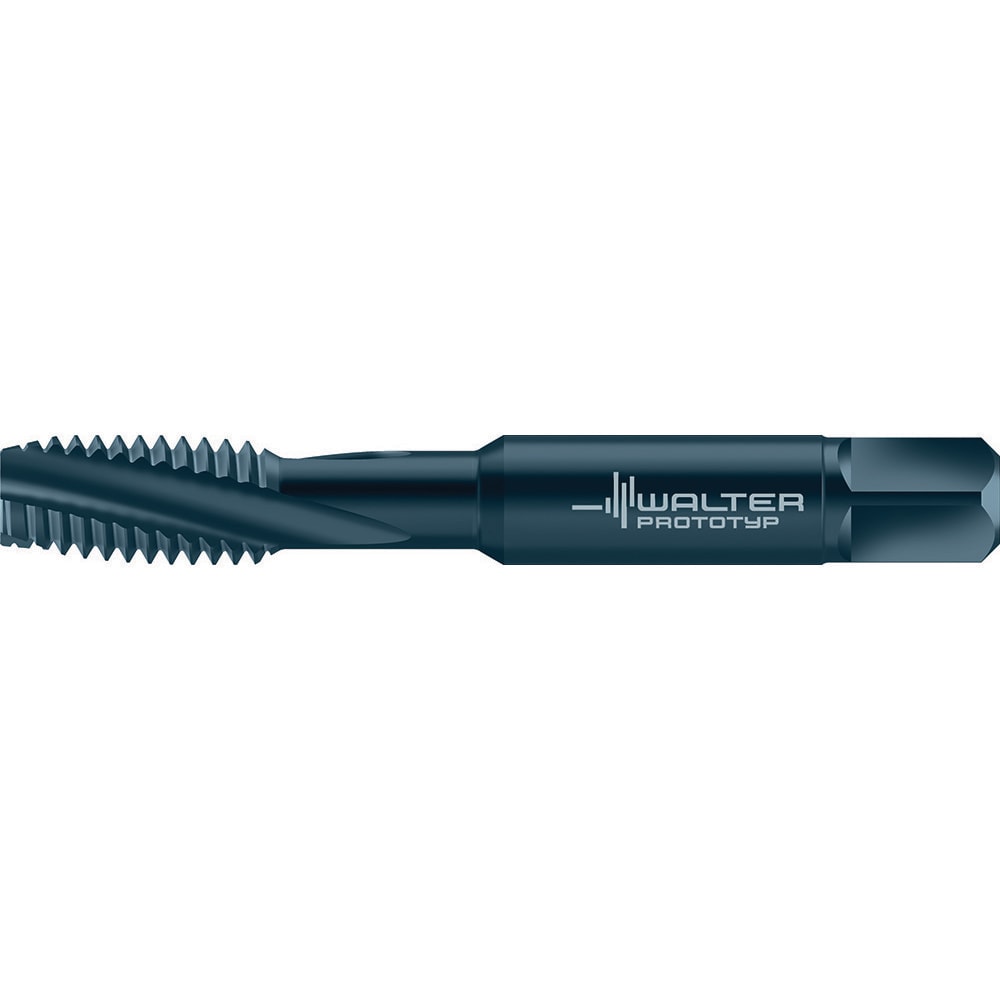

Spiral Flute STI Taps; Thread Size (Inch): #8-32; Overall Length (Decimal Inch): 2.4638; Overall Length (mm): 62.5800; Helix Angle: 15.00; Chamfer: Semi-Bottoming
Item #: 71513774
Brand: Walter-Prototyp
Model #: 8046357
Product Specifications
| Thread Size (Inch) | #8-32 |
| Overall Length (Decimal Inch) | 2.4638 |
| Overall Length (mm) | 62.5800 |
| Helix Angle | 15.00 |
| Chamfer | Semi-Bottoming |
| Thread Limit | H9 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material | Powdered Metal |
| Thread Length (Decimal Inch) | 0.7874 |
| Thread Length (mm) | 20.00 |
| Shank Diameter (mm) | 5.5800 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
| UNSPSC Code | 23241600 |
| Thread Size (Inch) | #8-32 |
| Overall Length (Decimal Inch) | 2.4638 |
| Overall Length (mm) | 62.5800 |
| Helix Angle | 15.00 |
| Chamfer | Semi-Bottoming |
| Thread Limit | H9 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material | Powdered Metal |
| Thread Length (Decimal Inch) | 0.7874 |
| Thread Length (mm) | 20.00 |
| Shank Diameter (mm) | 5.5800 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
| UNSPSC Code | 23241600 |
| MSC Part # | 71513774 |
| Mfr Part # | 8046357 |
| Country of Origin Country of Origin is subject to change | Germany |
