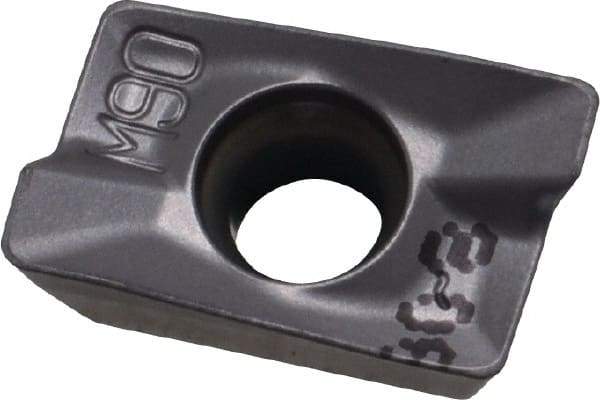

Iscar - HM90 ADKT1505 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.2303" Thick, 0.8mm Corner Radius
Item #: 82422247
Brand: Iscar
Model #: 5602499
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3799 |
| Length (Decimal Inch) | 0.5709 |
| Thickness (Decimal Inch) | 0.2303 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | HM90 ADKT 1505PDR |
