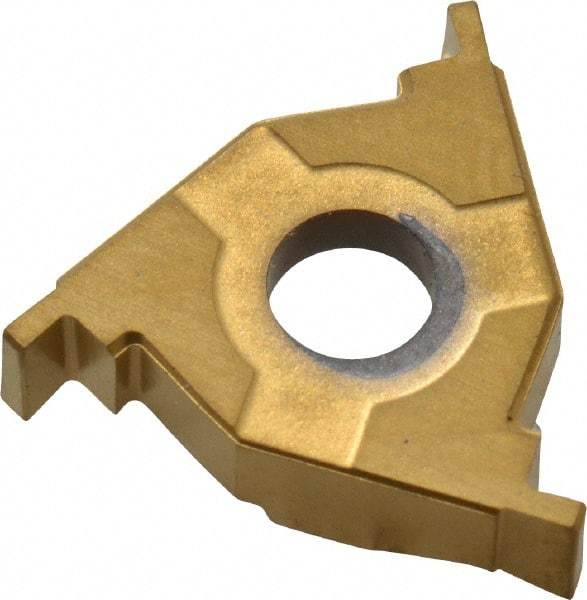

Carmex - 0.03916ER/IL Grade BXC, 0.039" Cutting Width Carbide Grooving Insert - 0.055" Max Depth of Cut, External Right/Internal Left, 0.004" Corner Radius, TiN Finish
Item #: 82331539
Brand: Carmex
Model #: 16ER/IL0.039BXC
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 16ER/IL |
| Insert Size | 0.039 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (Decimal Inch) | 0.0550 |
| Material Grade | C6 |
| Manufacturer's Grade | BXC |
| Coating | TiN |
| Insert Hand | External Right Internal Left |
| Relief Angle | 15 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| External Relief Angle | 10 |
| Internal Relief Angle | 15 |
