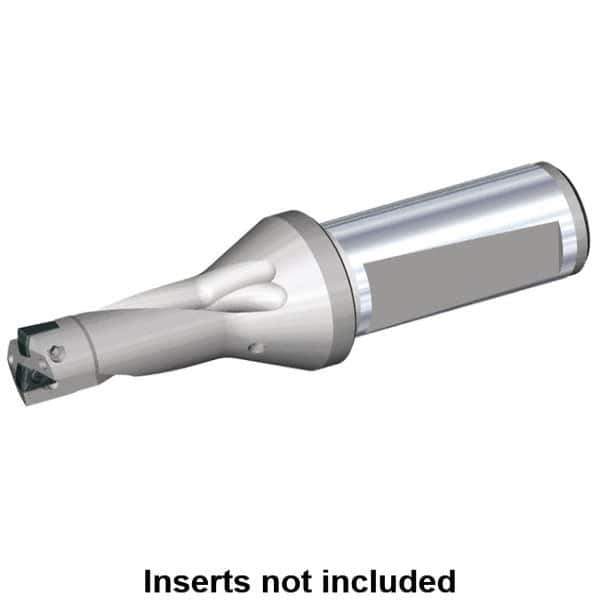

Kennametal - 38mm Max Drill Depth, 2xD, 19mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 82158346
Brand: Kennametal
Model #: 1799693
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (mm) | 19.00 |
| Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Depth (mm) | 38.00 |
| Maximum Drill Depth (Decimal Inch) | 1.4961 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 125.45 |
| Overall Length/Projection (Decimal Inch) | 4.9389 |
| Insert Compatibility (Outside or Peripheral) | DFR 0302.. |
| Insert Compatibility | DFR 0302.. |
| Flute Length (mm) | 49.00 |
| Flute Length (Decimal Inch) | 1.9291 |
| Body Length (Decimal Inch) | 2.6554 |
| Body Length (mm) | 67.45 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Collar Diameter (mm) | 41.90 |
| Collar Diameter (Decimal Inch) | 1.6496 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | R1/4 |
