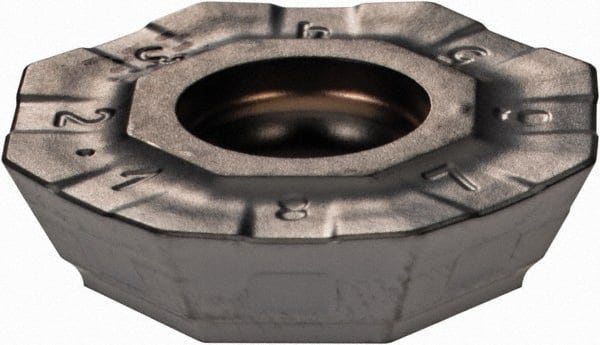

OFMT 07T3-AEN IC328 Carbide Milling Insert TiCN Finish, 0.1705″ Thick x 0.7008″ Wide
Item #: 82043639
Brand: Iscar
Model #: 5690336
Product Specifications
| Insert Style | OFMT |
| Insert Size Code | 07T3 |
| Insert Size | 07T3 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C5; C6; C2 |
| Manufacturer Grade | IC328 |
| Inscribed Circle (Decimal Inch) | 0.7008 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Relief Angle | 25.00 |
| Series | HELIOCTO |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1540 |
| Maximum Depth of Cut (mm) | 3.90 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | OFMT 07T3-AEN |
| Standards | ISO 13399 |
| Chip Breaker | AEN |
| Shape | Octagon |
| Coating/Finish | Coated |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.7008 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1705 |
