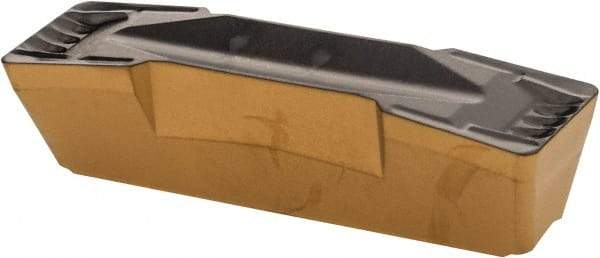

Iscar - 808GDMY Grade IC830, 8mm Cutting Width Carbide Grooving Insert - 0.189" Max Depth of Cut, Neutral, 0.0315" Corner Radius, TiAlN Finish
Item #: 81654808
Brand: Iscar
Model #: 6405082
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDMY |
| Insert Size | 808 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1800 |
| Series | Cut Grip |
