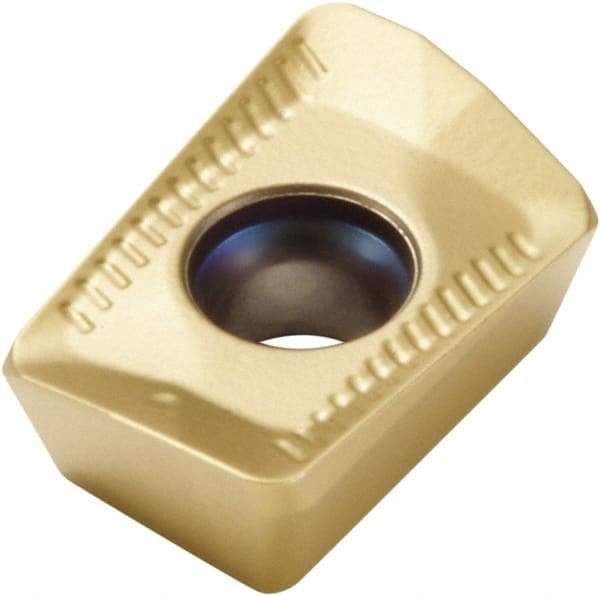

Seco - XOMX10T320 ME07 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.1508" Thick, 2mm Corner Radius
Item #: 81040891
Brand: Seco
Model #: 81652
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 10T320 |
| Material | Carbide |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2701 |
| Length (Decimal Inch) | 0.3740 |
| Thickness (Decimal Inch) | 0.1508 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | ME07 |
| Manufacturers Catalog Number | XOMX 10T320TR-ME07 |
