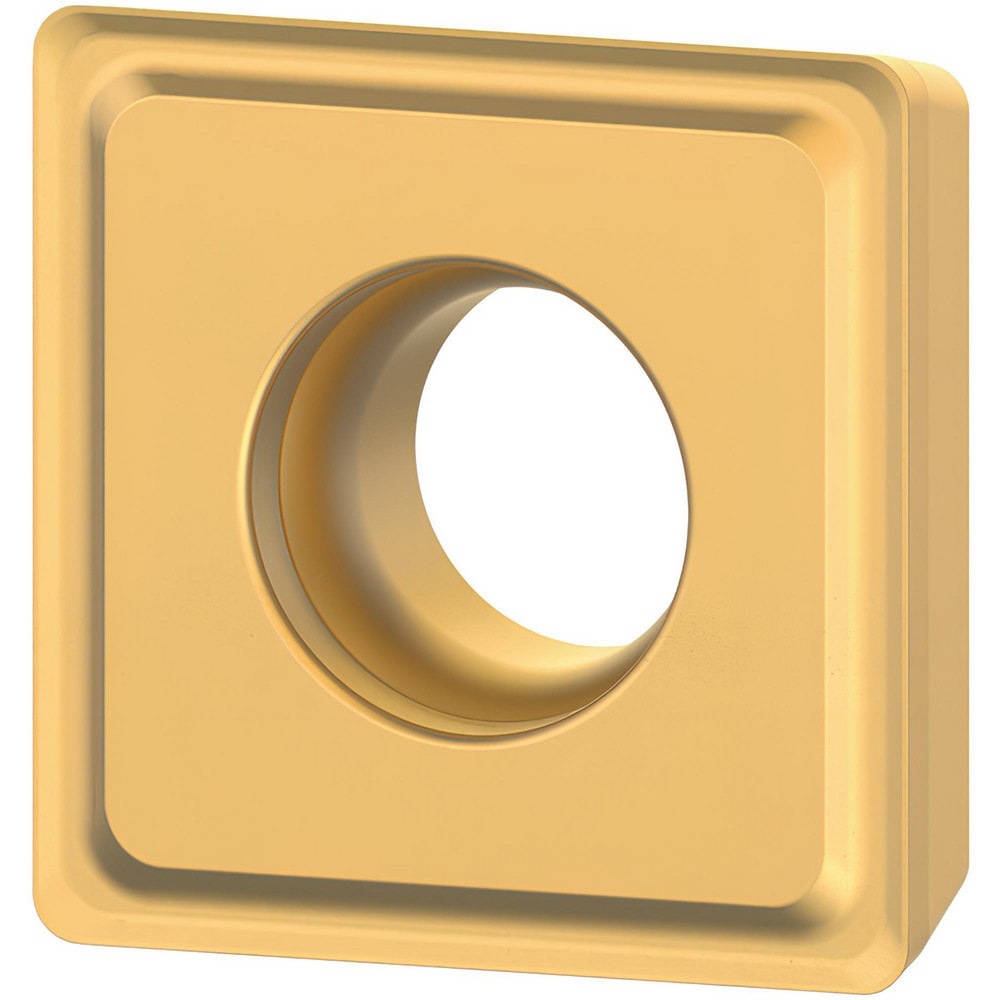

Indexable Drill Inserts; Insert Style: DFPR; Insert Material: Carbide; Manufacturer Grade: KC7140; Thickness (mm): 5.2
Item #: 02459337
Brand: Kennametal
Model #: 7034388
Product Specifications
| Insert Style | DFPR |
| Insert Material | Carbide |
| Manufacturer Grade | KC7140 |
| Thickness (mm) | 5.2 |
| Inscribed Circle (Decimal Inch) | 0.6240 |
| Inscribed Circle (mm) | 15.85 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.8 |
| Chipbreaker | MS |
| Series | Drill Fix |
| Shape | Proprietary |
| Relief Angle | 11 |
| Ansi Code | DFPR150508MSO |
| Iso Code | DFPR150508MSO |
| Compatible Drill Style | DFPR |
| Insert Size | 15 |
| Width (mm - 2 Decimals) | 15.85 |
| Length (Mm) | 15.85 |
| Width (Decimal Inch - 4 Decimals) | 0.624 |
| Length (Decimal Inch - 4 Decimals) | 0.624 |
| Included Angle Degree | 11 |
| Coating/Finish | TiCN; TiN |
| Insert Size Code | 15 |
| UNSPSC Code | 23242105 |
