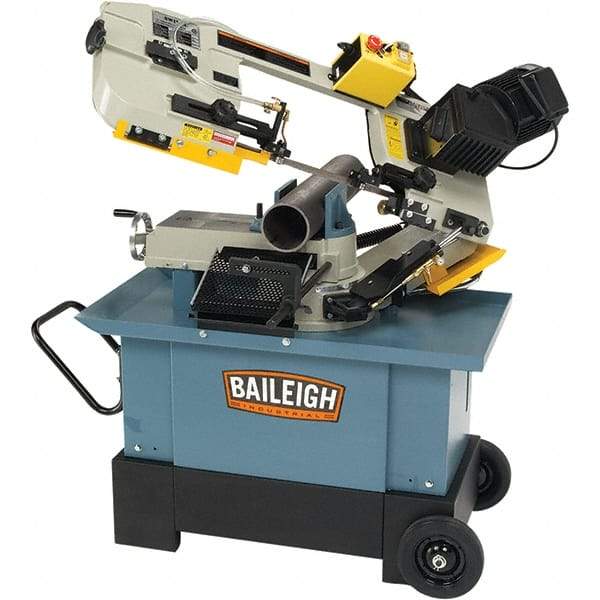

Baileigh - 7 x 10.23" Manual Combo Horizontal & Vertical Bandsaw - 1 Phase, 45° Vise Angle of Rotation, 1 hp, 110/220 Volts, Geared Head Drive
Item #: 80393622
Brand: Baileigh
Model #: 1001684
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial. They feature three to four fixed speeds
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Geared Head |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) at 90 (Inch) | 7 X 10.23 |
| Max. Capacity (Rectangular) at 90 (Decimal Inch) | 7.0000 |
| Maximum Capacity (Rounds) at 90 (Inch) | 7 |
| Maximum Capacity (Rounds) at 90 (Decimal Inch) | 7.0000 |
| Phase | 1 |
| Coolant System | Yes |
| Maximum Capacity (Rectangular) at 45 (mm) | 119 X 104 |
| Maximum Capacity (Rectangular) at 45 (Inch) | 4.72 X 4.13 |
| Maximum Capacity (Rounds) at 45 (Inch) | 4 |
| Maximum Capacity (Rounds) at 45 (Decimal Inch) | 4.3300 |
| Maximum Capacity (Rounds) at 45 (mm) | 110.00 |
| Max. Capacity (Rectangular) at 45 (Decimal Inch) | 4.7200 |
| Blade Length (mm) | 2360 |
| Blade Length (Inch) | 92.91 |
| Blade Length (Decimal Inch) | 92.91 |
| Blade Thickness (mm) | 0.90 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Floor to Table Height (Inch) | 23 |
| Horsepower (HP) | 1 |
| Overall Height (mm) | 1092 |
| Overall Height (Inch) | 43 |
| Overall Height (Decimal Inch) | 43 |
| Voltage | 110/220 |
