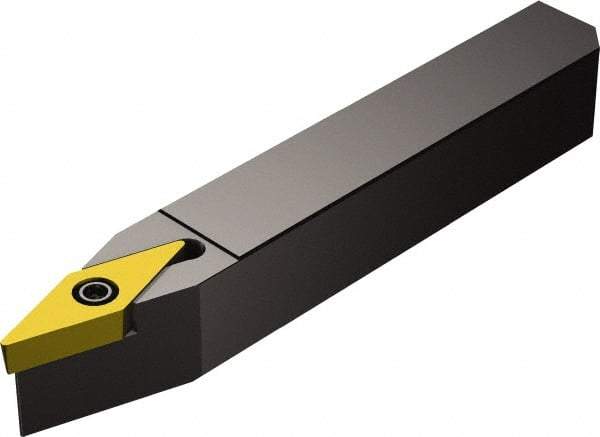

Sandvik Coromant - QS-SVVB, Neutral Cut, 17.50° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 70mm OAL, VBMT 11 03 04 Insert Compatibility, Series CoroTurn 107
Item #: 80379126
Brand: Sandvik Coromant
Model #: 5738207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | QS-SVVB |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | 17.50 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | VBMT 11 03 04 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 8.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3268 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
| Toolholder Material | Steel |
