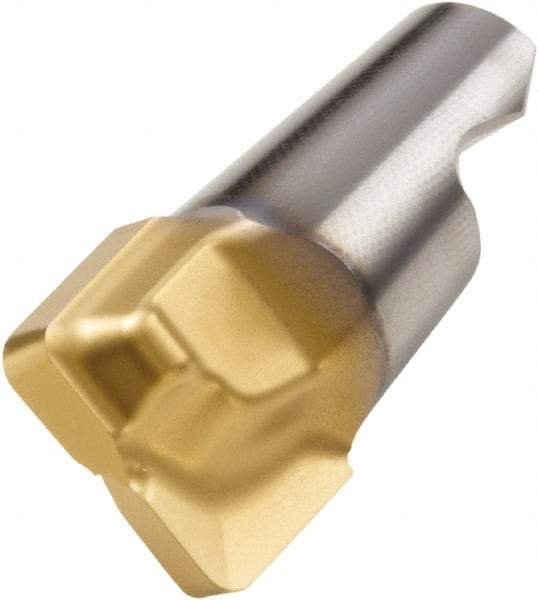

Seco - MM06 MD02 Grade F30M Carbide End Milling Tip Insert - 2 Flutes, 0.236" Cutting Diam, 0.161" Depth of Cut, 0.199" Extension, 0.039" Cnr Rad
Item #: 80261878
Brand: Seco
Model #: 08030
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM06 |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.2360 |
| Manufacturer's Grade | F30M |
| Depth of Cut (Decimal Inch) | 0.1610 |
| Number of Flutes | 2 |
| Milling Tip Full Description | Slot/Square Shoulder Milling |
| Corner Radius (Decimal Inch) | 0.0390 |
| Coating Process | PVD |
| Chipbreaker | MD02 |
| Extension From Holder (Decimal Inch) | 0.1990 |
