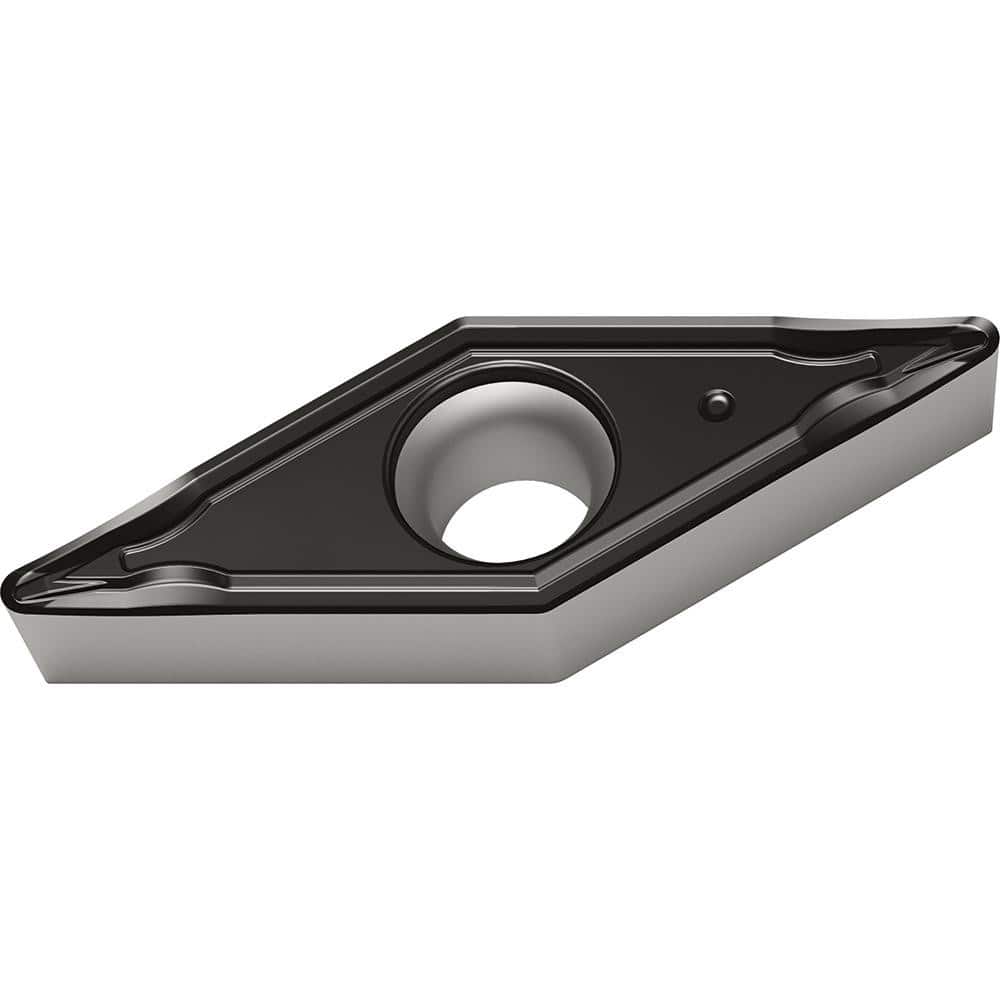

Turning Insert: VCMT331-FM4 WSM01, Solid Carbide TiAlN Finish, Neutral, 0.6540″ Long, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 35.0 ° N/A Diamond, Series VCMT-FM4
Item #: 79976585
Brand: Walter
Model #: 8190170
Product Specifications
| Insert Style | VCMT |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM01 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCMT-FM4 |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Steel |
| Secondary Workpiece Material Code | P; H; N |
| Ansi Code | VCMT331FM4WSM01 |
| Iso Code | VCMT160404-FM4 WSM01 |
| Chip Breaker | FM4 |
| Coating/Finish | TiAlN |
