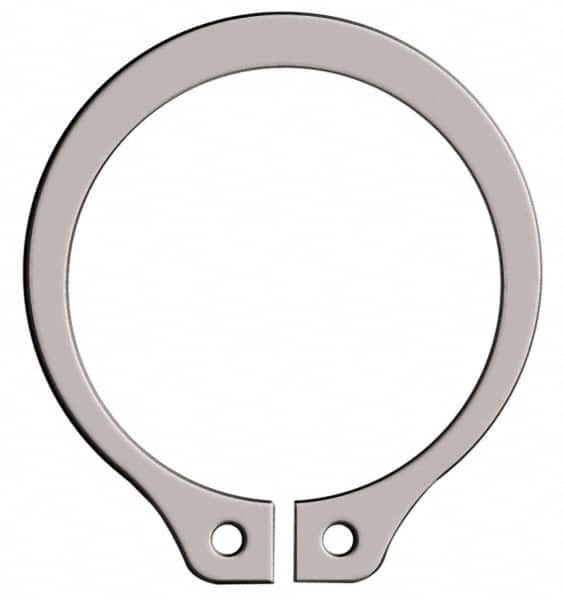

1-7/8″ Shaft Diam, 44.93mm Groove Diam, Steel External Snap Retaining Ring 2.44″ Free OD, 44.07mm Free ID, 1.73mm Groove Width x 0.053″ Groove Depth, 1.57mm Ring Thickness, Grade 1060-1090, Military Spec
Item #: 79949434
Brand: Rotor Clip
Model #: SH-187ST MCD
Product Specifications
| System of Measurement | Inch |
| Groove Diameter | 1.769 in |
| Groove Diameter Tolerance | -0.0050 to 0.0050 in |
| Shaft Diameter (mm) | 47.63 |
| Shaft Diameter (Inch) | 1-7/8 |
| Shaft Diameter (Decimal Inch) | 1.8750 |
| Free Diameter | 1.735 in |
| Free Outside Diameter | 2.44 in |
| Groove Diameter (Decimal Inch) | 1.7690 |
| Groove Diameter (mm) | 44.93 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 2.4400 |
| Free Diameter (mm) | 44.07 |
| Free Diameter (Decimal Inch) | 1.7350 |
| Military Specification | MS 16624-1137; Does Not Meet Military Specifications; MS 16624-1043; MS 16624-1087; MS 16624-1175; MS 16624-1187; MS 16624-1075; MS 16624-1025; MS 16624-1037; MS 16624-1125; MS 16624-1100; MS 16624-1050; MS 16624-1062; MS 16624-1150 |
| Finish | Cadmium Plated |
| Military Specification | MS 16624-1187 |
| Inside Diameter | 44.07 mm |
| Finish/Coating | Cadmium-Plated |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Groove Depth | 0.053 in |
| Ring Thickness Tolerance | -0.003 to 0.003 in |
| Meets Specification | Yes |
| Standards | SAE 1060-1090; UNS G10600-G10900 |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.068 in; 1.73 mm |
| Groove Width (mm) | 1.73 |
| Groove Depth (Decimal Inch) | 0.0530 |
| Ring Thickness (Decimal Inch) | 1.57 mm; 0.062 in |
| Ring Thickness (mm) | 1.57 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.020 to 0.013 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.003 to 0.003 |
| Hardness | Rockwell C47-C52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
 | |
| MSC Part # | 79949434 |
| Mfr Part # | SH-187ST MCD |
| Big Book Page # | 2095 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
