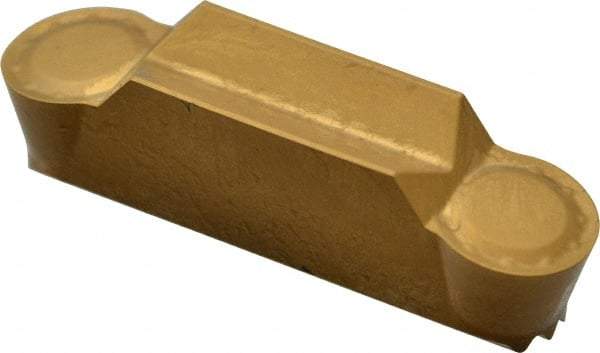

Seco - LCMF, 0.315" Cutting Width, MP, CP500 Grade, Double End Multi-Directional Turning Insert - TiAlN, TiN Coated, Full Radius
Item #: 79844189
Brand: Seco
Model #: 16403
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Insert Hand | Neutral |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Cutting Height (Decimal Inch) | 0.2160 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Single or Double End | Double |
| Chipbreaker | MP |
| Full Radius | Yes |
| Insert Length (Decimal Inch) | 1.1830 |
| Series | MDT |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
