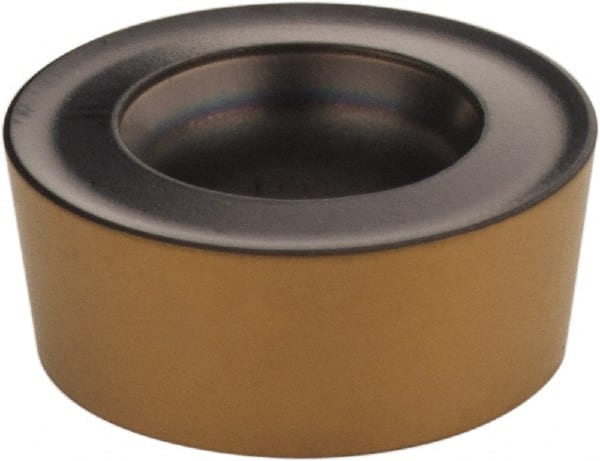

RCMT1204M014 IC807 Carbide Turning Insert TiAlN Finish, 12mm Inscribed Circle, 3/16″ Thick, Round, Series Isoturn
Item #: 79831194
Brand: Iscar
Model #: 5550391
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 1204M0 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC807 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Included Angle | 14.0 |
| Relief Angle | 7 |
| Series | Isoturn |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | Submicron |
| Stocking Category | D |
| Chip Breaker | T |
| Coating/Finish | TiAlN |
