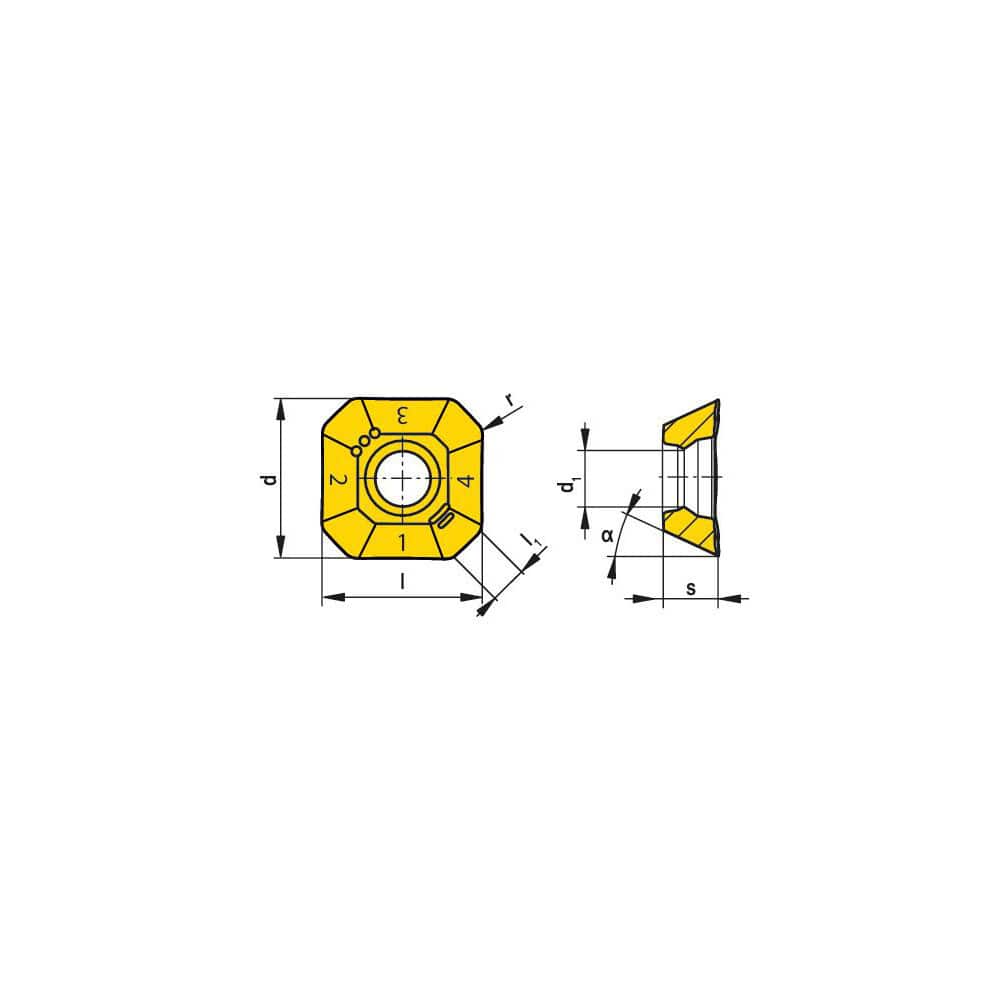

Milling Insert: SFKT 0903AFSR-R50 CTCK215, CTCK215, Solid Carbide N/A Finish,
Item #: 79814109
Brand: Ceratizit
Model #: 51065520
Product Specifications
| Insert Style | SFKT |
| Insert Size Code | 0903 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCK215 |
| Inscribed Circle (Decimal Inch) | 0.3858 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Relief Angle | 25.00 |
| Series | SFKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1319 |
| Maximum Depth of Cut (Decimal Inch) | 0.1614 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3543 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | SFKT 0903AFSR-R50 CTCK215 |
| Chip Breaker | R50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1378 |
