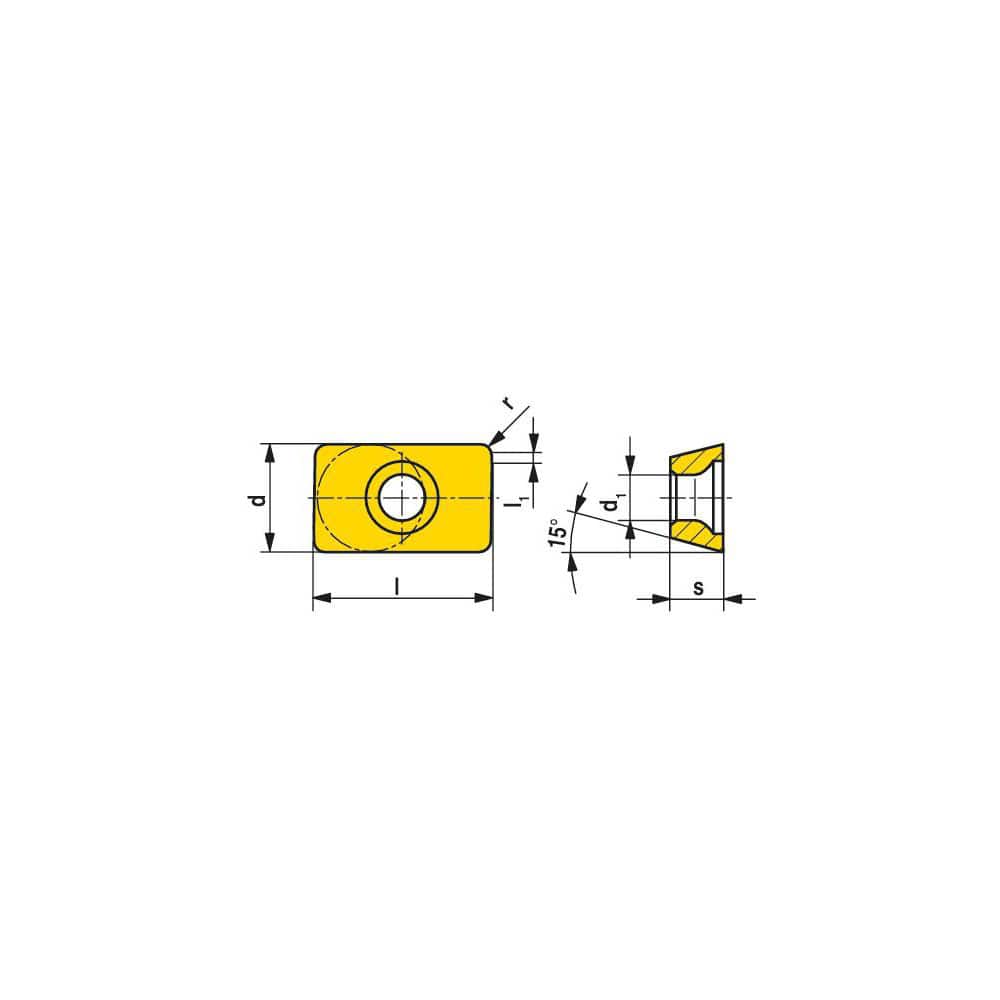

Milling Insert: LDFT 1504PDSR-33 CTPM240, CTPM240, Solid Carbide N/A Finish,
Item #: 79750089
Brand: Ceratizit
Model #: 51042420
Product Specifications
| Insert Style | LDFT |
| Insert Size Code | 1504 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM240 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | LDFT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4032 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5906 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | LDFT 1504PDSR-33 CTPM240 |
| Chip Breaker | 33 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
