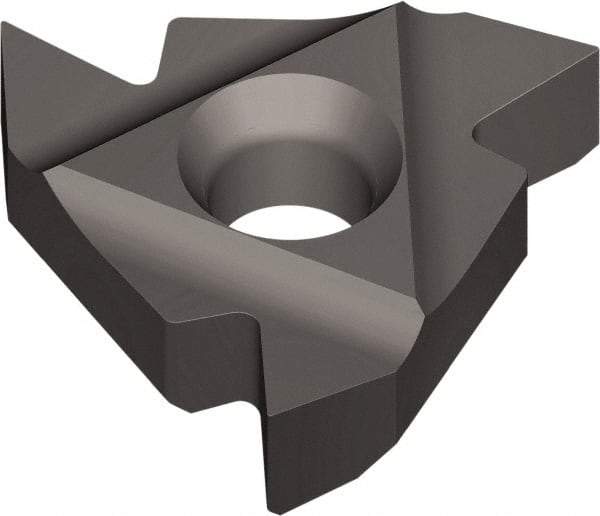

Vargus - 3EL External Left Hand 14-8 Partial Profile 60° Laydown Threading Insert - Grade VTX, TiAlN Coated Carbide, 9.53mm Inscribed Circle
Item #: 79504254
Brand: Vargus
Model #: 51027
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 3EL |
| Insert Hand | Left Hand |
| Thread Type | External |
| Thread Standard | Partial Profile 60 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Threads Per Inch | 14-8 |
| Pitch (mm) | 1.75 to 3 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.60 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0270 |
| Number of Teeth Per Side | 1 |
