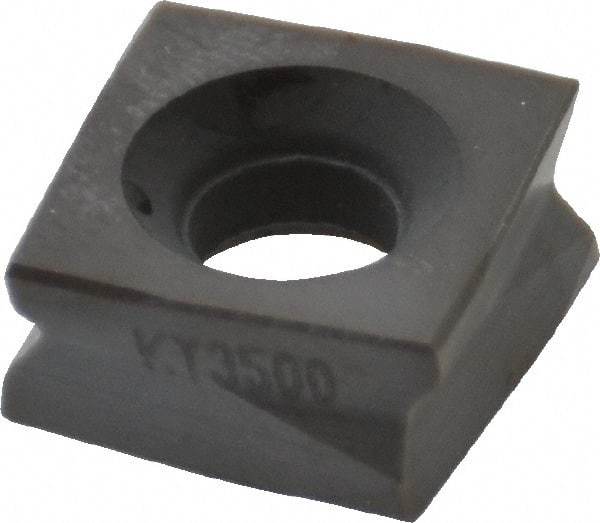

Kennametal - SPHX1205 GP Grade KY3500 Ceramic Milling Insert - Uncoated, 0.217" Thick, 12mm Inscribed Circle
Item #: 78999067
Brand: Kennametal
Model #: 1505370
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SPHX |
| Insert Size | 1205 |
| Material | Ceramic |
| Material Grade | C2 |
| Manufacturer's Grade | KY3500 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 12.00 |
| Thickness (Decimal Inch) | 0.2170 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Relief Angle | 11.000 |
| Rake Angle | 5 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GP |
| ISO Number | SPHX1205PCTRGPBK |
