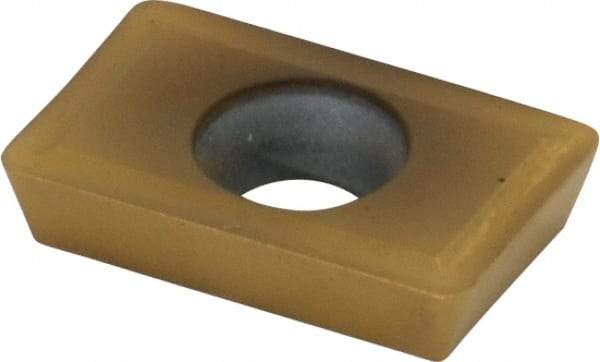

Kennametal - XDMT150308 Grade KC735M Carbide Milling Insert - TiN Finish, 0.1252" Thick, 0.8mm Corner Radius
Item #: 78998614
Brand: Kennametal
Model #: 1181565
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDMT |
| Insert Size | 150308 |
| Material | Carbide |
| Manufacturer's Grade | KC735M |
| Coating | TiN |
| Width (Decimal Inch) | 0.3752 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 88 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | XDMT150308R |
