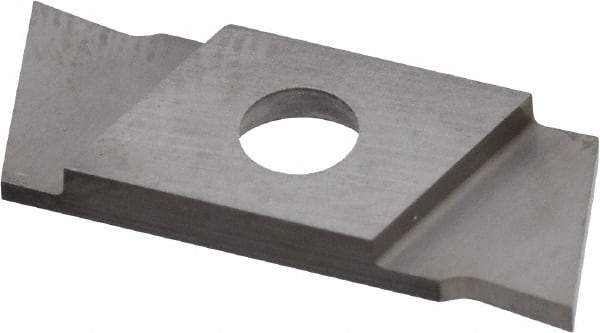

NIKCOLE MINI-SYSTEMS - GIE 1.1mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Left Hand
Item #: 78678331
Brand: NIKCOLE MINI-SYSTEMS
Model #: GIE7SG1.1L C6
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIE |
| Material | Carbide |
| Cutting Width (mm) | 1.10 |
| Cutting Width (Decimal Inch) | 0.0433 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Material Grade | C6 |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Multi-Use Tool | No |
| Overall Length (mm) | 17.00 |
| Overall Length (Decimal Inch) | 0.6693 |
| Series | Nikcole Mini-Systems |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
