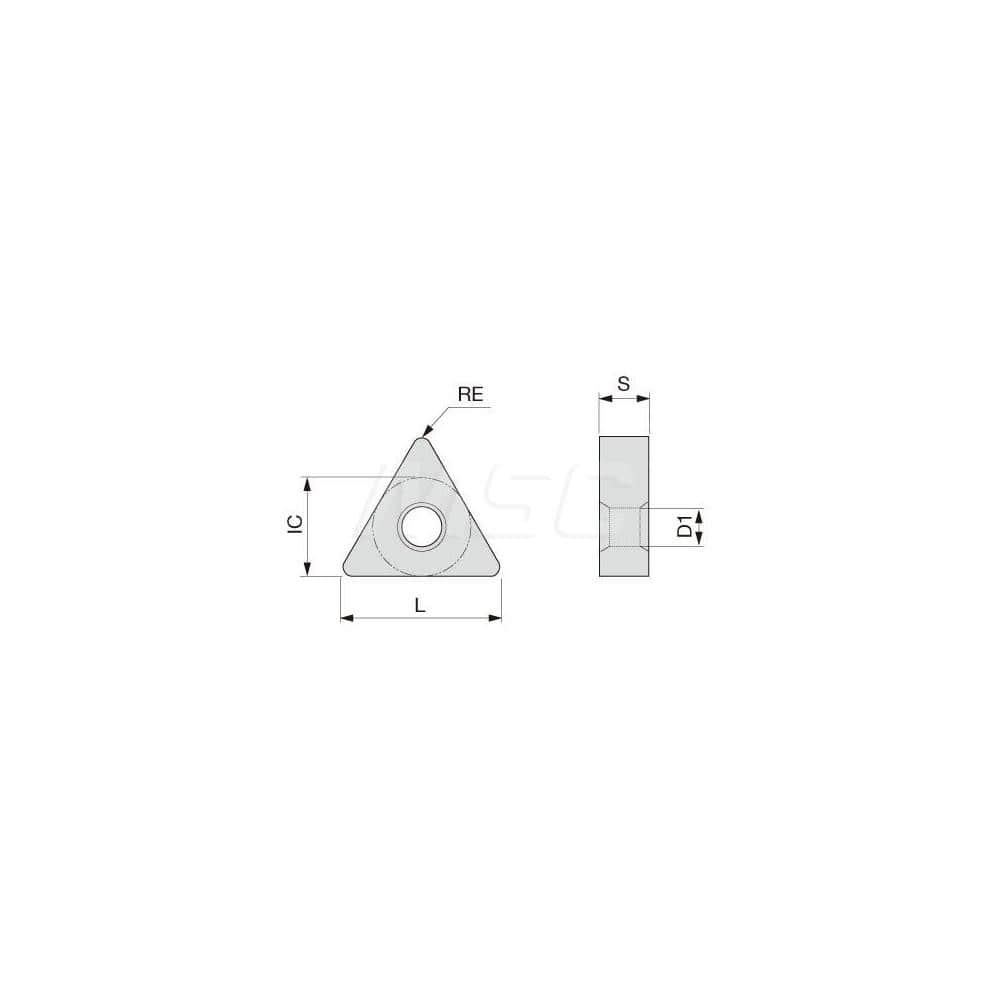

Turning Insert: TNGA322 TH10, Solid Carbide Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TNGA
Item #: 78617750
Brand: Tungaloy
Model #: 6808079
Product Specifications
| Insert Style | TNGA |
| Insert Size Code | 322 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | TNGA322TH10 |
| Iso Code | TNGA160308 TH10 |
| Chip Breaker | FT |
| Coating/Finish | Uncoated |
