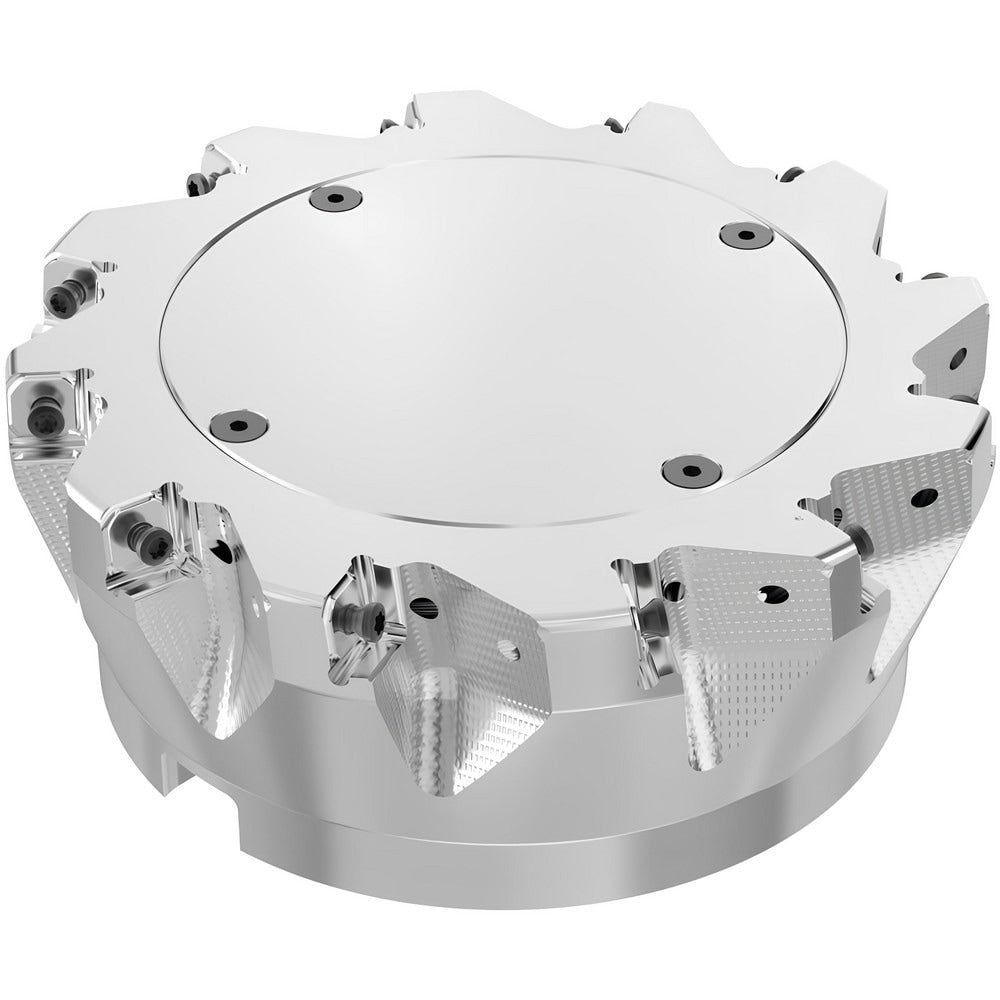

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (Inch): 6; Maximum Cutting Diameter (Decimal Inch): 6.0394; Maximum Depth of Cut (Decimal Inch): 0.3543
Item #: 40067159
Brand: Seco
Model #: 10134798
Product Specifications
| Minimum Cutting Diameter (Inch) | 6 |
| Maximum Cutting Diameter (Decimal Inch) | 6.0394 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Arbor Hole Diameter (Inch) | 2 |
| Lead Angle | 88.000 |
| Compatible Insert Size Code | 12 |
| Cutter Style | R220.88 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -8 |
| Series | R220.88 |
| Hub Diameter (Decimal Inch) | 4.3307 |
| Keyway Width (Decimal Inch) | 0.7559 |
| Overall Height (Decimal Inch) | 2.4803 |
| Pitch Type | Normal |
| Maximum RPM | 7000.000 |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SN.U1204 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.88-06.00-12-12SAP |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| Number Of Flutes | 12 |
| UNSPSC Code | 23291600 |
