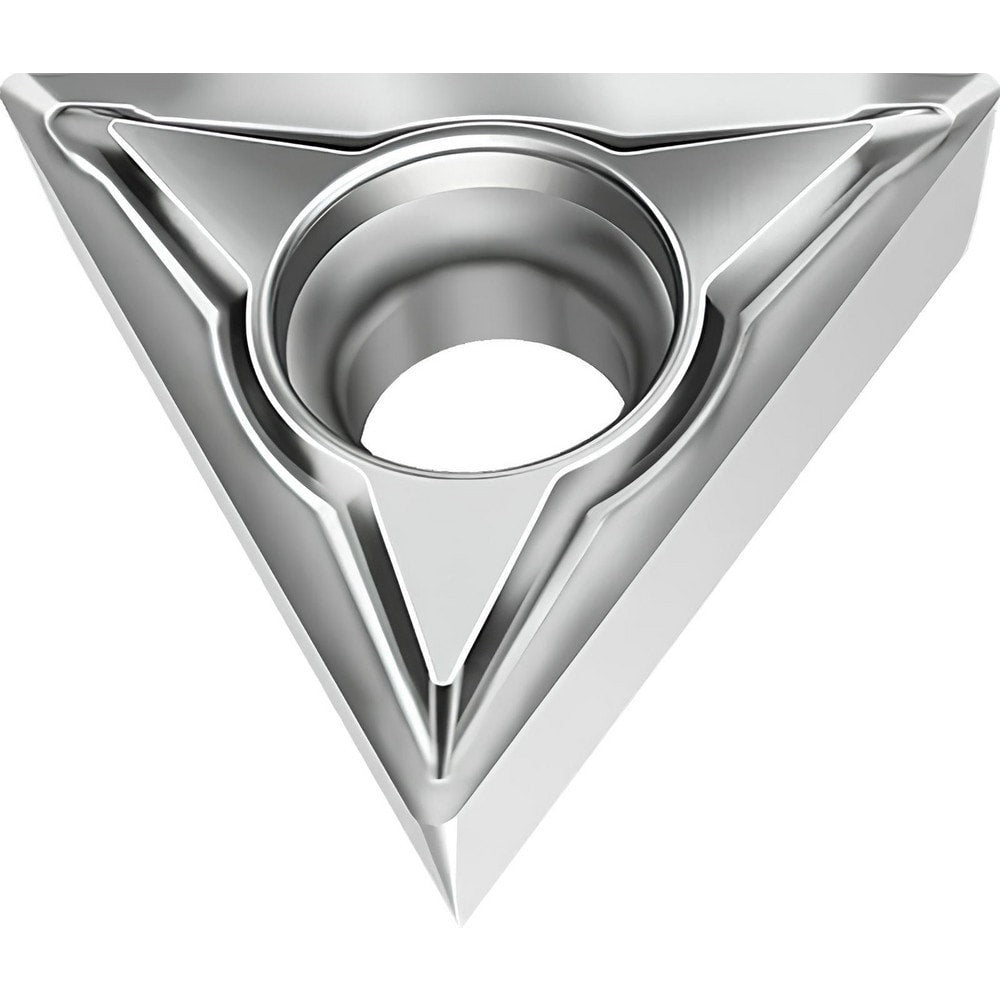

Boring Inserts; Insert Style: TCGT; Insert Size Code: 1.21.21; Insert Material: Carbide; Material Grade: S10, N10; Manufacturer Grade: WN10; Inscribed Circle (Inch): 5/32
Item #: 16360398
Brand: Walter
Model #: 8132995
Product Specifications
| Insert Style | TCGT |
| Insert Size Code | 1.21.21 |
| Insert Material | Carbide |
| Material Grade | S10; N10 |
| Manufacturer Grade | WN10 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | FN2 |
| Series | TCGT-FN2 |
| Coating Process | Uncoated |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | TCGT06T104-FN2 WN10 |
| Standards | ISO; ANSI |
| Rake Angle | 18 |
| Manufacturers Catalog Number | 8132995 |
| Length (Decimal Inch - 4 Decimals) | 0.2610 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.261 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.2710 |
