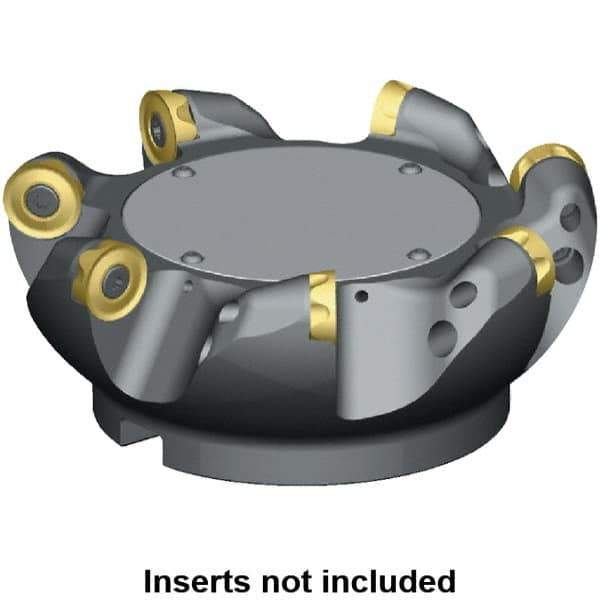

Kennametal - 160mm Cut Diam, 10mm Max Depth, 40mm Arbor Hole, 7 Inserts, RCGT 2006... Insert Style, Indexable Copy Face Mill - 14,000 Max RPM, 63mm High, Series KSRM
Item #: 78471588
Brand: Kennametal
Model #: 3095651
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | KSRM |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RCGT 2006... |
| Maximum RPM | 14000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.9370 |
| Insert Inscribed Circle (mm) | 20.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCGT 2006MO.. |
