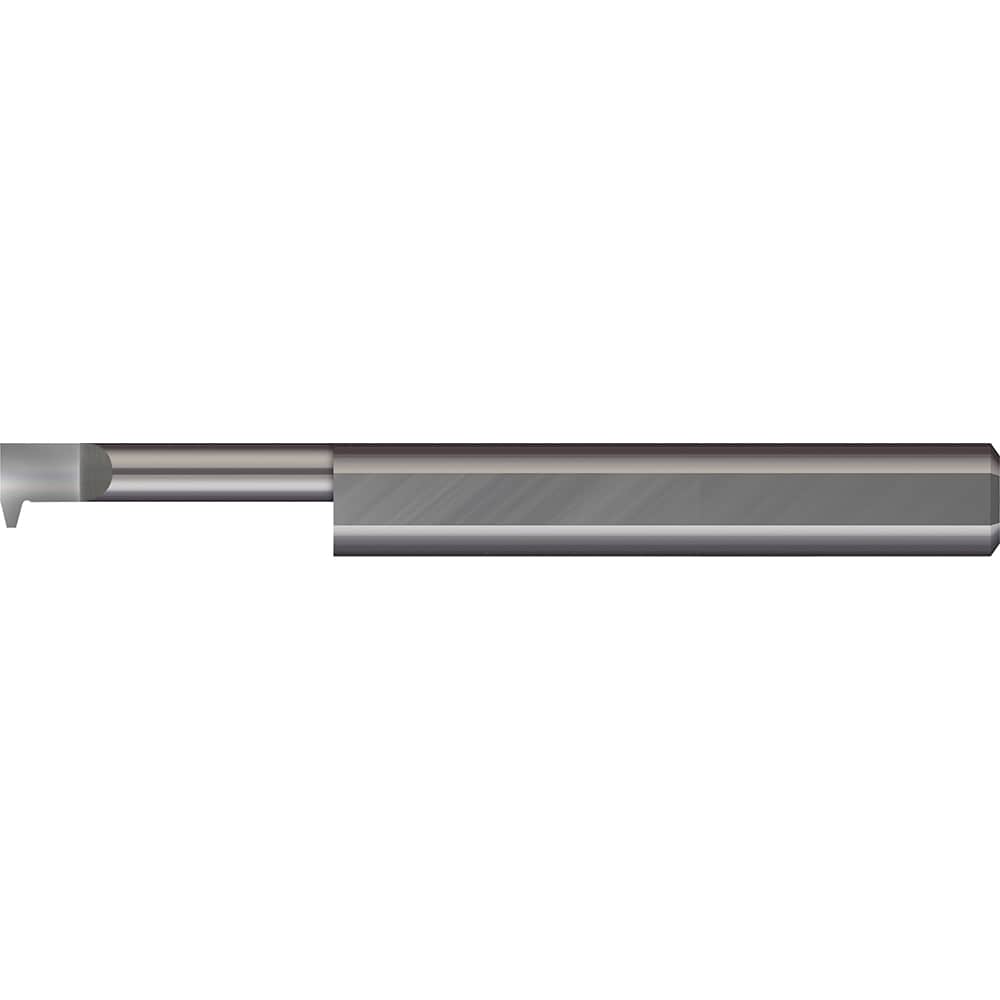

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 29; Threading Diameter (Decimal Inch): 0.3950; Cutting Depth (Decimal Inch): 0.7500; Maximum Threads Per Inch: 10
Item #: 76140714
Brand: Micro 100
Model #: IAT2-750-10
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 29 |
| Threading Diameter (Decimal Inch) | 0.3950 |
| Cutting Depth (Decimal Inch) | 0.7500 |
| Maximum Threads Per Inch | 10 |
| Minimum Threads Per Inch | 10 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.7000 |
| Thread Direction | Right Hand |
| Projection from Edge (mm) | 2.80 |
| Projection from Edge (Decimal Inch) | 0.1100 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Flat Width (Decimal Inch) | 0.0320 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
